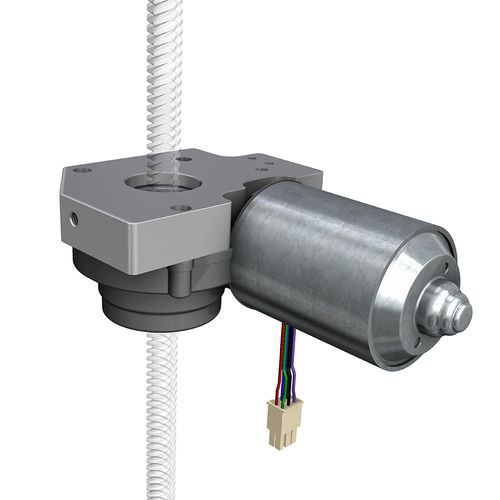

Motor drive for through going spindle 4778

Powerful 24 V DC motor with worm gear, designed for non-rotating
through going spindle for pushing and pulling movements. A cable with
AMP plug and an integrated Hall sensor allows easy and secure control
of the entire system.

Special features
Two integrated Hall sensors for measurement of the revolutions and direction of rotation
Different type of internal thread for through going spindles
Good self-locking properties
Fast and powerful
Order spindle separately

Variant key

The variants are formed by different internal thread types for connecting
the spindles.

Technical notes
Spindle is not included; must be ordered seperatly.
Achtung: Note correct installation position (see installation example/position).
The drive must be protected against lateral forces by a guide system.
The drive working range (nominal torque) is determined for a service life of 10,000 double strokes
By using a controller with a short-circuit brake the holding torque position of the drive can be increased.

Parameter Name	Parameter Value
Movement	linear
Type	electric
Technology	worm gear
Motor	DC
Other characteristics	compact with integrated position sensor
Force (N)	1000 - 3700
Speed (mm/s)	10 - 40
