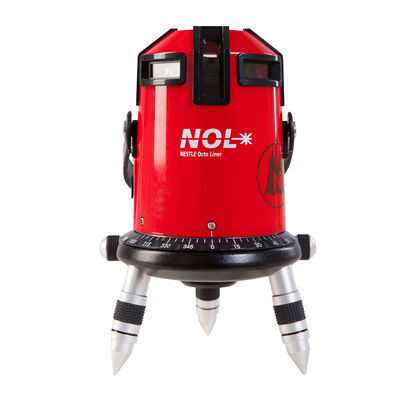

Multiline laser with 360° horizontal line
• Ideal for any kind of alignment.
• For renovation works, glaziers, frame and drywall- workers, electricians, building contractors.
• The NESTLE Octoliner emits a 360°- horizontal line.
• Additional vertical lines cross each other at a 90°-angle for upper plumb spot.
• Also, a bottom plump beam is emitted.
• The Octoliner features motorized self-levelling at a range of 4°.
• The 5/8″-thread connection allows for fixing the laser on a tripod.
• The Octoliner is also suitable for working with a receiver.
• Tangent screws for exact alignment of the vertical beams .
• The Octoliner features a manual mode for beam inclination.
• Adjustable foot screws for balancing the instrument on uneven surfaces beyond self-levelling range.
• Scope of delivery contains laser glasses, a target plate, accu with charger and a carrying case.

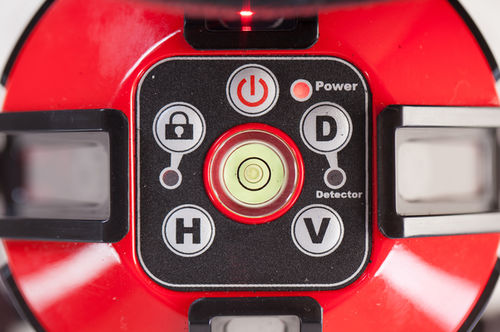

• Illuminated bubble for quick and easy pre-alignment.
Applications
• Manual tilt in one axis: ± 5% electronically and additionally ± 8%  mechanically by the feet.
• Easy handling.
• The motorized self levelling prevents the laser line from jittering in comparison to pendulum line lasers.
• Unique versatility due to the combination of the 360° line and the vertical beams.
Accessories

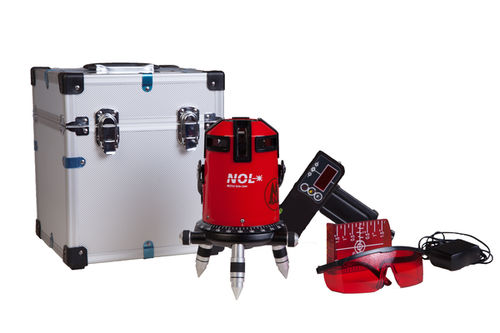

Scope of delivery: Octoliner, Carrying case, Li-Ion battery, target plate, glasses, charger
• For outdoor working we recommend the receiver DECTO incl. holder, model no. 16814000
• The Octoliner ist available in a set with receiver DECTO
model no. 16101001
.

Parameter Name	Parameter Value
