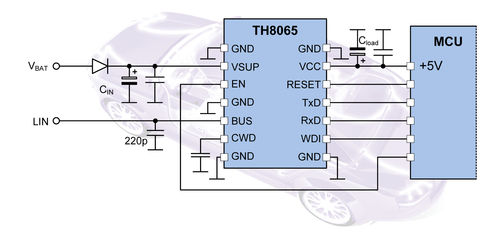

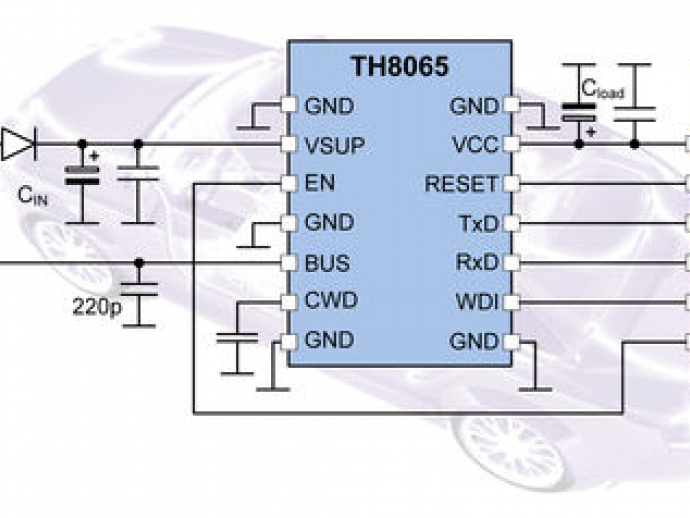

TH8065 is a System Basis IC (SBC) suitable for LIN slave applications. The product consists of a low drop voltage regulator of 5V/70 mA, along with a LIN Bus transceiver and a watchdog. The transceiver is suitable for LIN-Bus systems in conformity to the Rev 1.2 LIN-Protocol specification.

The network is also able to operate in either the normal data rate mode or a high-speed data download mode, suitable for assembly lines and service data transfer operations. The high-speed mode is only intended for assembly line as well as data transfer operational usage, especially in situations when the bus is attached to an off-board service node. The node is responsible for providing temporary bus electrical loads, facilitating higher speed operation. Finally, the temporary loads should be removed without performing download operations.

Parameter Name	Parameter Value
Network	LIN-bus radio
Other characteristics	IC
