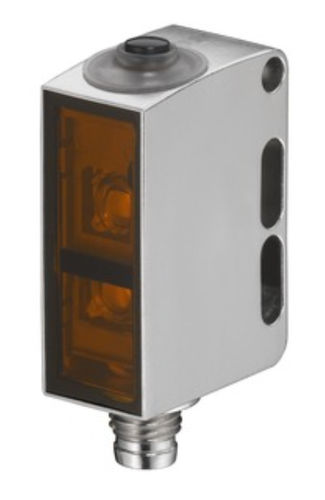

Operating principle - Distance diffuse sensor with background suppression
Type of scanning system -
Special version - 2 independent switching outputs
Measurement value output
Small light spot (S)
Wash-Down design
Black-white error - < ± 2 mm
Operating range - 0.01 ... 0.08 m
Adjustment range - 30 ... 80 mm
Light source - LED, Red
Light spot size [at sensor distance] - 4 mm [60 mm]
Measurement range - 30 ... 80 mm
Resolution - 1.0 mm
Accuracy - -2 ... 2 mm
Reproducibility (1 sigma) - 1 ... 1.4 mm
Measurement value output - via IO-Link
Optical distance measurement principle - Triangulation
Protective circuit - Polarity reversal protection
Short circuit protected
Supply voltage UB - 12 ... 30 V, DC, Incl. residual ripple
Residual ripple - 0 ... 15 %, From UB
Open-circuit current - 0 ... 25 mA
Number of digital switching outputs - 2 Piece(s)
Switching element - Transistor, Push-pull
Switching principle - IO-Link / light switching (PNP)/dark switching (NPN)
Switching element - Transistor, Push-pull
Switching principle - Dark switching (PNP)/light switching (NPN)
Switching frequency - 750 Hz
Response time - 0.66 ms
Type - IO-Link
Specification - V1.1
Type of connection - Connector
Thread size - M8
Material - Stainless steel
No. of pins - 4 -pin
Dimension (W x H x L) - 14 mm x 35.4 mm x 25 mm
Housing material - Stainless steel
Material of operational control - Plastic (POM Hostaform C9021, copolyester Tritan TX1001), non-diffusive
Housing roughness - Ra ≤ 0,8, Typical value for the stainless steel housing
Stainless steel housing - AISI 316L, DIN X2CrNiMo17132, W.No1.4404

Parameter Name	Parameter Value
Measured physical value	light
Applications	for safety edges
Other characteristics	IP67
