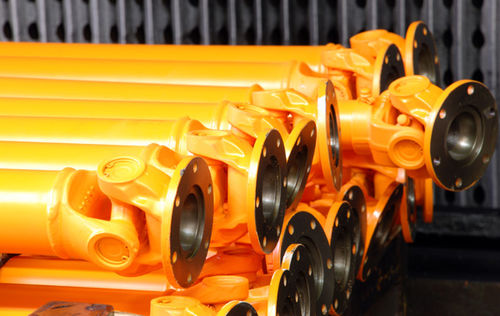

Light Duty Universal Driveshaft & Prop shafts

Our competitive range of light duty Universal Driveshafts covers SAE range 1140 to 1510. The DIN range covers from 58 mm to 150 mm Flange diameter. This gives a torque transmission range from 150 Nm up to 3120 Nm.

Mechanics style joints are also available for off highway applications. As well as standard Telescopic Driveshafts we can also offer Double Joint assemblies, Fixed length, Mid Ship Shafts with support bearings and Short Coupled Driveshafts.

Applications requiring wide-angle flanges, long slip movement and balance grades to G6.3 tolerance can also be offered.

Our in-house selection software allows us to offer complete Driveshaft systems with minimal torsional twist or customized stiffness to suit a particular system.

Bearing lifetime, critical speed and a t.v.a. studies can also be carried out.

We can also offer our light duty drive shafts with custom paint finishes including two pack epoxy paint for corrosive environments and with any RAL colour specified by our customers.

Parameter Name	Parameter Value
Type	light-duty
