The lifting cylinders of the T Series are designed for the agricultural and construction vehicles

Among the hydraulic actuators of our production range there is the T Series of plunger lifting cylinders, suitable for agricultural vehicles, earth moving and forklifts.
The hydraulic actuators automate the entire driving process, by minimizing the human interaction with the machine. The hydraulic cylinders supply controlled energy to the driving system, so that the driver can turn the steering wheels through a minimal effort in medium speed conditions. This effort is considerably reduced even when the vehicle is moving slowly or is stationary. The hydraulic power of the actuator ease the mechanical operation of the machine, giving an optimal output in terms of linear, oscillatory or rotary movement.

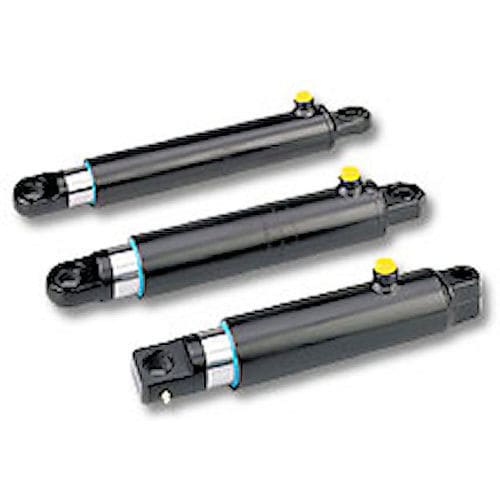

Single acting lifting plunger cylinder Series T: main features

The T Series of plunger hydraulic cylinders are designed for the agricultural and construction vehicles: tractors, earthmoving vehicles, backhoe loaders, dumpers, wheel loaders, graders, municipal vehicles, forklifts.
Here are the main features:

Electro-upset stem or from chromed bar friction welded
Rod guide systems in treated metal or with applied rings
Cold extruded barrel
ASTM B117 96h corrosion resistant chrome surface
Hardened monolithic stem
Auto-Venting System
Designed to position sensors

Parameter Name	Parameter Value
Movement	rotary
Type	hydraulic
Technology	piston
Configuration	single-acting
Applications	for lifting for construction equipment for agricultural machinery for vehicles for forklift trucks
Stroke (mm)	75 - 185
Pressure	Max.: 100 bar (1,450.4 psi)Min.: 0 bar (0 psi)
Bore	42 mm, 45 mm, 55 mm, 55.5 mm, 65 mm (1.65 in)
Fluid temperature	Max.: 100 °C (212 °F)Min.: -30 °C (-22 °F)
