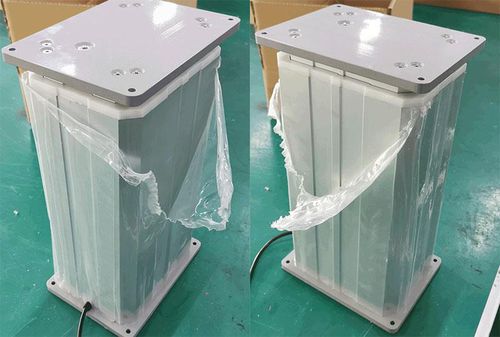

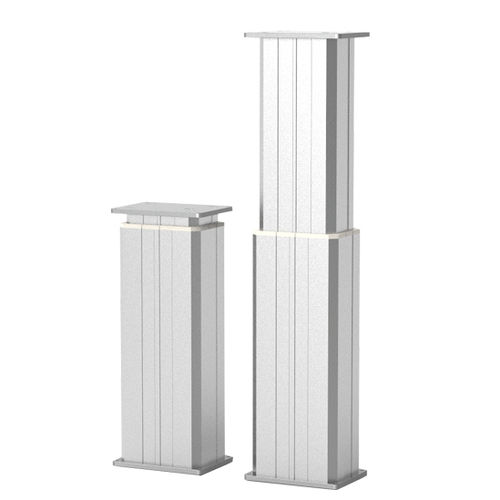

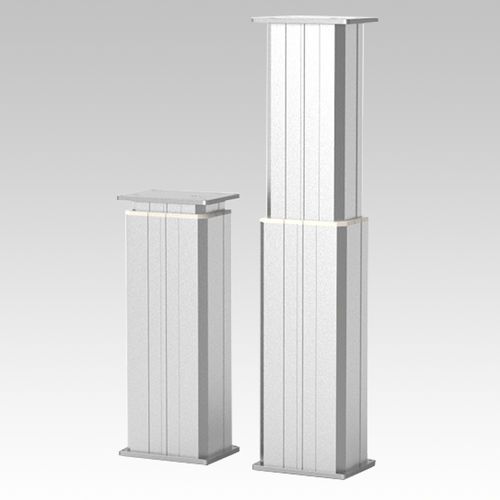

Lifting column for medical applications HTA2

Lifting column for medical applications HTA2

Lifting column for medical applications HTA2

About


HTA2 lifting column developed for industrial, medical and furniture application, such as operation platform, hospital beds, nursing home beds, treatmentunitsand height adjustable desk. HTA2 available for synchronous control 2-8 columns at same time, and can provide minimal dimensions and long stroke selection ... and so on...

General Features

•Voltage of motor: 12V DC, 24V DC
•Maximum load: 8,000N
•The fastest speed at full load: 3mm / s (load 8000N)
•Stroke: 50~800mm
•Minimum dimensions: Stroke + 180 mm (S<300mm)
• Stroke + 200 mm (S>300mm)
•Color: Silver gray
•IP rating: IP54
•Operational temperature range: -25°C~+45°C
•Higher duty cycle (25%)
•Other options: Hall sensor
•High strength metallic zinc alloy housing protects motor and gear
•Built-in limit switches (not adjustable)



PARAMETERS

Parameter Name Parameter Value
Applications
  • for medical applications
  • for furniture
Electrical characteristics
  • synchronous
  • adjustable
  • high-speed
  • 12 VDC
  • 24V DC
Other characteristics
heavy-duty
Force (N)
800 - 8000
Stroke (mm)
100 - 500
