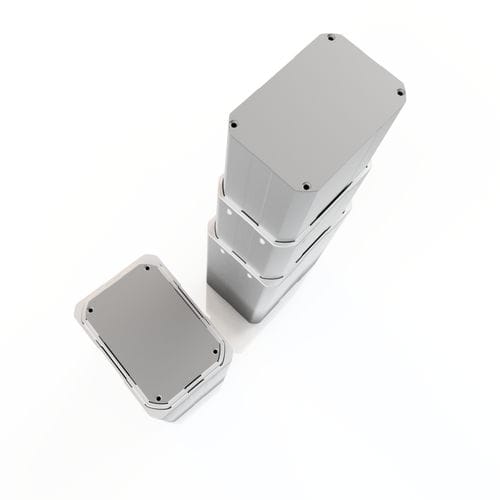

B-series is a rectangular lifting column that is offered with either 2- or 3-sections. 2-section B-columns has dimensions of 206x144 mm and suits applications with a centric loads the best. 3-section B-columns are very stable when it comes to lifting offset loads and can also enable short retracted lengths. The 3-section columns has dimensions of 219x157 mm.

All X2 lifting columns are made of stiff aluminium tubes and treated for lowest possible friction. This enables us to mount them with very tight tolerances to achieve maintenance free and smooth run without any play. Our columns are applicable in the medical, ergonomic and industrial area.

Parameter Name	Parameter Value
Applications	for medical applications industrial
Electrical characteristics	synchronous adjustable high-speed
Other characteristics	telescopic 3-stage 2-stage heavy-duty
Voltage DC	24V DC
Force (N)	0 - 12000
Stroke (mm)	50 - 3000
