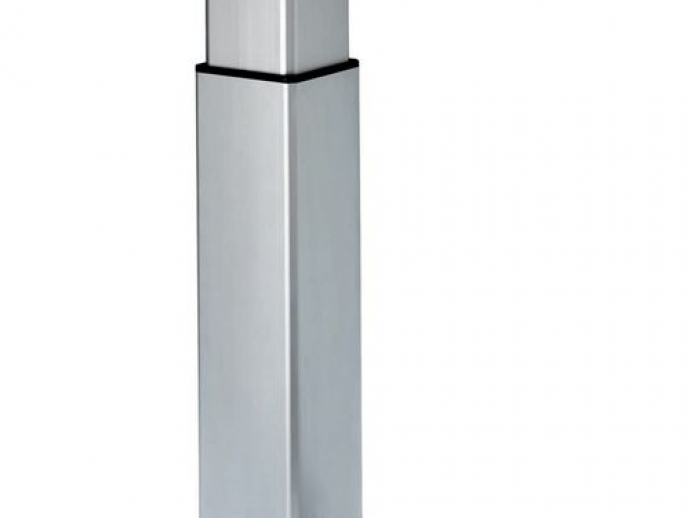

The guide profiles of the Alpha Colonne are exactly square shaped. This makes the side forces identical for all sides. Compared to other systems, it has a third guide step with a large overlapping when it is extended which improves its stability.

Features:
„ Two sizes available: “medium” and “large”
„ Suitable for both tensile and compressive loads push/pull forces
„ Self-locking, even at max. load
„ Pre-set slider units ensure zero play, even after many years of operation
„ Integrated limit switches
„ Optional internal control

Options:
„ Special lengths

Parameter Name	Parameter Value
Applications	for medical applications for furniture TV/monitor
Electrical characteristics	synchronous adjustable low-noise
Other characteristics	telescopic 3-stage heavy-duty compact
Voltage DC	24V DC
Force (N)	1000 - 2000
Stroke (mm)	200 - 300
