Robust, compact multi-channel data logger with an integrated cellular modem
Impact-resistant aluminum housing with threaded connector, optimised for level tubes of 4" diameter
Either with an external battery or integrated solar module (type FlashCom)

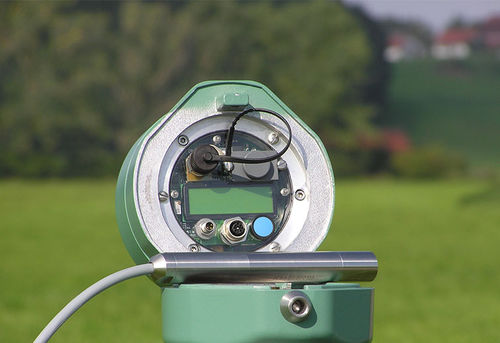

LCD with three multi-function buttons to display current measured values and system status
Transfer Options: Data retrieval via mobile network, FTP Push, TCP push, SMS push, SMS Alarms
Can be connection to DS(T) 22, MPS-PTEC/D8/K16 and other external sensors
Efficient:
Low energy consumption through intelligent power management = higher battery life = lower maintenance intervals = lower operating costs.
Low maintenance:
Power supply with commercial 1.5 V batteries (LogCom) or as an autonomous system with integrated solar cells and an internal battery (FlashCom)
Easy to install:
The LogCom/FlashCom is equipped with a 4" threaded connector. Just as the SEBA cap, the measurement system can be easily mounted and fixed onto the existing sounding pipe. For larger diameter pipes up to 6 " appropriate adapters (reductions) are available.
Variable:
Depending on the measurement task, up to 32 logical channels can be managed in the logger. Thus, it is possible, for example, to connect 16 digital SEBA-pressure / temperature DS(T) 22 sensors, or three MPS-D8 multiparameter sensors using an internal RS485 interface. In addition, with the help of an external A/D converter, up to eight analog sensors can be connected.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
level
|
| Configuration |
compact
|
| Interface |
wireless
|
| Other characteristics |
|
