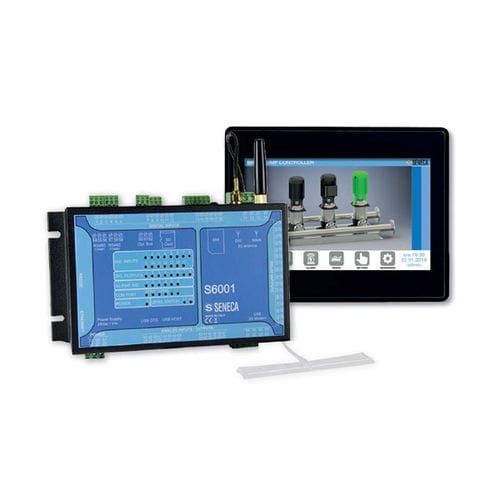

S6001 Pump Controller (version S6001-PC-4GWW) is a CPU for pumping systems and pressurisation units capable of handling from 2 up to 6 pumps (*), with constant flow, level and pressure regulation.
S6001 PC, based on Straton IDE, is a CPU/RTU fully compatible with the LET'S platform (VPN/IoT technology for Industry 4.0 by SENECA) and allows also via SMS to: receive commands (on/off, auto/man) to pumping stations; calculate the estimated flow rate based on the characteristic curve of motorized users; send information on the operating and alarm status following SMS commands.
The configuration of the S6001 PC does not require any knowledge of the Straton development environment as it is done via the wizard configurator.
The user interface is ergonomic and intuitive via HMI touchscreen 7", it allows complete device management as well as immediate consultation of alarms, trends and historical data.

HMI power supply - 18..32 Vdc / 0,3 A
HMI information - TFT Color/LED 7" touchscreen
Resolution 800x400 px
Insulation - 1.500 Vac
LED status indicators - Power Supply
Serial communication
Ethernet communication
PLC status
GSM-UMTS signal
Protection degree - IP20
Operating temperature - -10..+65°C
Dimensions LxHxD - 190x105x60 mm
Connections - Removable terminals, max conductors dimension 2,5 mm2
Mounting - Panel mount or DIN guide 35 mm (IEC EN 60715) with included adapters
Ethernet port - Nr. 1 10/100 Ethernet 10/100Tx (RJ45) port
Serial ports - Nr. 2 RS485 port
USB ports - Nr. 1 USB host port
Modem/router - 4G LTE with worldwide bands support

Parameter Name	Parameter Value
Other characteristics	level and flow measurement
