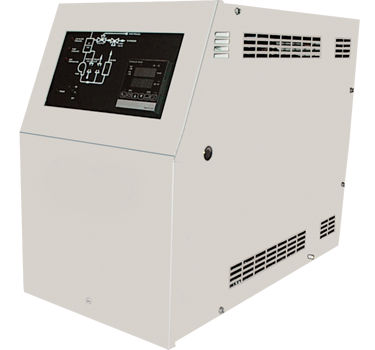

Troublesome cooling circuit leaks in processes can result in serious production losses. The leaks may be due to small stress cracks, which leak under pressure. Our Positive/Negative Pressure TCU uses a liquid venturi to draw cooling water through the mold under negative pressure.

Precise temperature control is provided by the operation of a solid state or microprocessor controller, which activates a heater or a cooling water solenoid as required.

Standard Features
• Off-the-shelf microprocessor-based PID temperature control with Process and Set Value LED readout
• Graphic control panel with indicating and warning status lights
• Operating range of 32ºF to 180ºF (0ºC to 82ºC)
• Open reservoir vented to atmosphere
• Single stage Incoloy™ immersion heater with IEC mechanical contactors
• 1/4” cooling solenoid valve (Cv=0.85)
• Hi/low level sensor with 3/8” makeup solenoid valve
• Low supply water pressure switch
• 150 psi (10.3 bars) pressure relief valve
• 2” (5 mm) casters
• 3/4” cooling water connections
• Manually-operated 3-way valve for changeover to negative pressure mode
• Centrifugal pump
• 1-year warranty on parts and labor at factory
• 5-year warranty on controller
• Lifetime warranty on pump housing, impeller, heater tube, piping
• 460/3/60 or 230/3/60 standard operating voltage
• 9 kW heater

Parameter Name	Parameter Value
Display	LED
Type	PID
Protection level	standard immersion IEC
Use	cooling for injection molding process
Other characteristics	3-way
Maximum temperature (°C)	0 - 82
