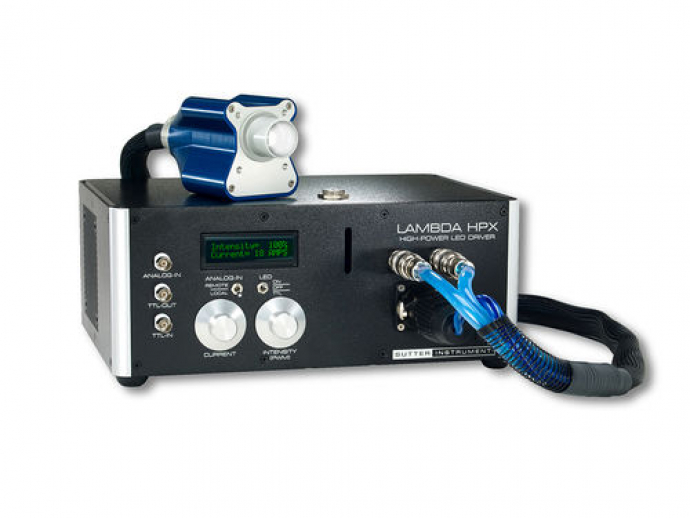

The Lambda HPX represents the latest generation of liquid-cooled high-output LED light sources. Designed around a single 90W 4.25mm LED die, the Lambda HPX provides light output comparable to a 200W xenon arc lamp. A quiet, vibration-free liquid cooling head (pre-filled at the factory) allows us to maintain the low junction temperatures required to reach the manufacturer’s projected bulb life of 60,000 hours. The HPX is expected to retain 95% of its original output at 5000 hours, and 80% after 10,000 hours. The lightweight precision-machined LED head is designed to mount directly on the epi port of a microscope using an included microscope adapter (specify at time of order). This affords the maximum amount of light coupled directly to the scope, without the losses associated with a liquid light guide.
Because LEDs exhibit color shift with current change, the Lambda HPX was designed to dim the LED using either PWM or current control. PWM will be preferable for most applications, and allows the LED to run cooler. PWM switching is at 28KHz, high enough for use with most high speed cameras. For those with applications intolerant of pulsed output, dimming via current control is also available. PWM and current information are conveniently displayed on the front panel display, and are manually selectable via control knobs. Integral shuttering time is 10 microseconds to turn on and off.

Parameter Name	Parameter Value
Illumination technology	LED
Spectrum	white, UV
Other characteristics	portable high-power liquid-cooled
Technical applications	for microscopes
Output power	90 W(0.12237 hp)
Wavelength	Min.: 430 nmMax.: 700 nm
