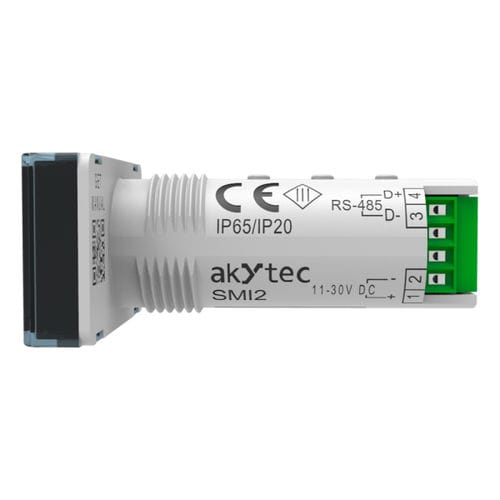

The SMI2 is a universal display unit for monitoring industrial processes. It has an RS485 interface and the measured values can be displayed up to four digits.

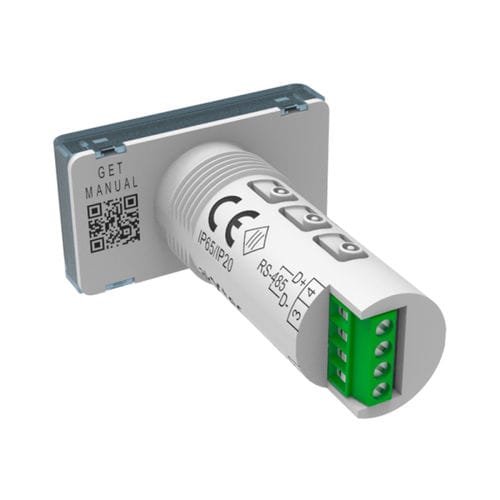

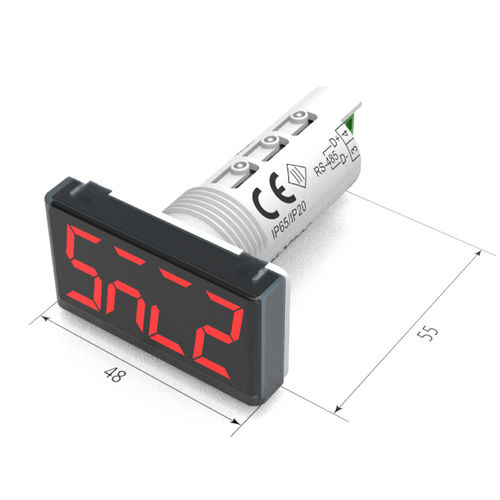

The SMI2 has a compact, standardised design and fits into a standard 22.5 mm borehole for signal lamps. This provides quick and easy installation and many displays can be accommodated in a control cabinet door or on a panel.

The SMI2 is a universal applicable display unit for monitoring industrial processes. It has an RS485 interface and the measured values can be displayed up to four digits. The SMI2 has a compact, standardized design and fits into a standard 22.5 mm bore-hole for signal lamps. This provides quick and easy installation and many displays can be allocated in a control cabinet door or on a panel.

Functions and features:
Can be used as a Modbus Master or Slave
Displays values in an RS485 network
Supports several variable types: int, word, float, string
Displays alarm for values outside the specified range
Supported protocols: Modbus RTU / ASCII

Areas of application:
The RS485 display SMI2 can be used for a multitude of tasks. For example for simple control systems without their own display, the important data from the PLC or the I/O modules for diagnostic purposes can be displayed in a space-saving manner. The SMI2 can also be installed in a remote control panel, in order to display the necessary control values close to the operator. The displays can be quickly and easily integrated into the existing network with the enclosed configuration software.

Parameter Name	Parameter Value
Type	LED

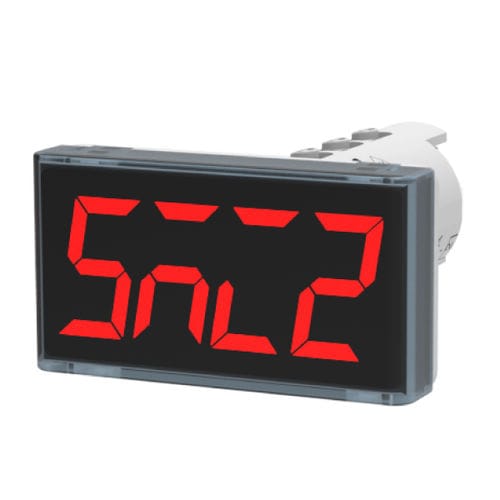

Format	compact, 4-digit, 7-segment
Applications	industrial control remote control
Other characteristics	RS485 Modbus RTU integrated IP65
