Dimensions (mm)
173×95×39

Hole size (mm)
163×85

Weight (g)
270

Working temperature
0℃～55℃(No freezing)

Working environment humidity
5～95%RH(No condensation)

Shockproof
10～25HZ(2G/30 minutes in XYZ direction)

Shell material
Engineering plastics ABS+PC

Power consumption (W)
3

Power supply
DC24V(±15%)

Static level
Level 3 ±6KV

Contrast
400 : 1

Brightness
400cd/m2

Touch panel
4-wire high-precision touchpad

Display color
260000

RAM
128MB DDR3

CPU
Cortex A8 600MHz

Storage
128MB FLASH

Network port
NO

USB download port
YES

USB flash drive
YES

Serial interface
COM:RS232,RS422,RS485

FCC compatibility
Comply with FCC, Class A

Pressure test
1000V AC,1 minute

CE certification
Complies with EN55032 and EN55035 standards

Protection level
IP65(Front panel)

Configuration Software
NATouch

Parameter Name	Parameter Value

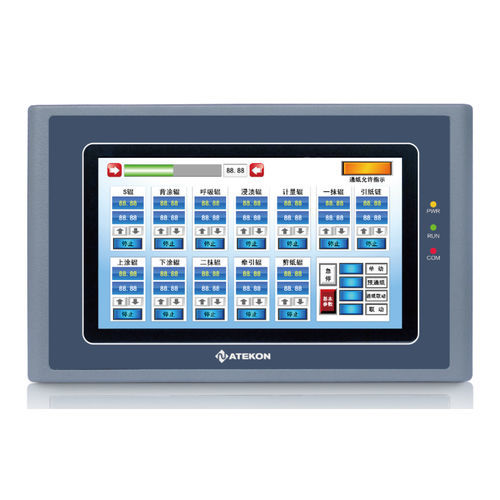

Type	LED with touch screen
Format	480 x 272
Applications	AC power
Other characteristics	precision backlit
