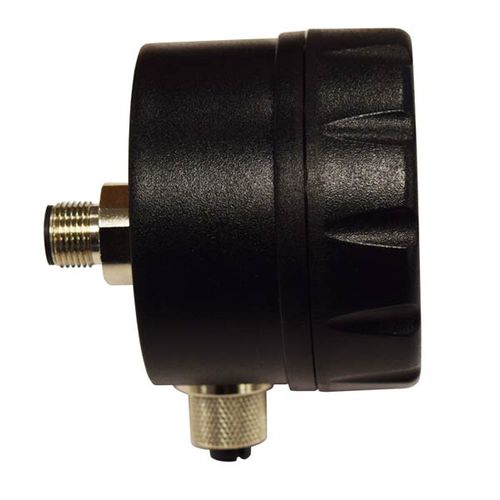

AcuLoop, a 4-20 mA, loop powered, plug in display suitable for use with the AcuDew high performance dewpoint transmitter.
Self-contained, robust and reliable with a weatherproof classification of IP65. This display is ideal for use in a wide range of industrial environments where local indication is required.

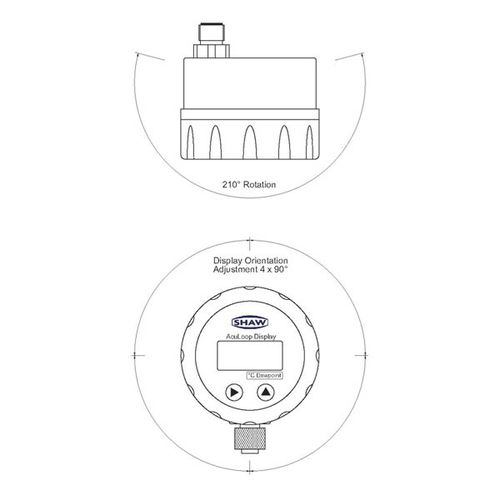

Easy to install and lightweight, the AcuLoop display connects directly to the AcuDew dewpoint transmitter. Whether the dewpoint transmitter is installed horizontally or vertically, the large four-digit LED display is easily supported on the body of the dewpoint transmitter and can be rotated for optimum viewing with the orientation adjustable to 210 degrees on its stem and 360 degrees, at four x 90 degrees increments, on its axis.
The AcuLoop connects via the M12 connector of the AcuDew, which is loop powered through the AcuLoop display module. The 4-20 mA span is fully programmable to correspond with any AcuDew dewpoint range and configured using the two-button layout on the display. When paired with the AcuDew, various dewpoint ranges are available covering an overall range from -120 °C to +20 °C (-184 °F to +68 °F) dewpoint and the output units can be displayed in °C dewpoint, °F dewpoint, ppm(v) or ppb(v).

Parameter Name	Parameter Value
Type	LED
Format	compact, 4-digit, 1-line
Applications	industrial power for the energy sector
Other characteristics	cost-effective electronic IP65 rugged integrated
