LED-Display Assemblies
LED-Display Assemblies improve manufacturing assembly processes with reduced EMI and cosmetic options not possible with lightpipes or LEDs mounted directly on PCBs and are ideal for use in a variety of applications including medical, industrial and commercial products

Moving LEDs into an LED assembly on the top surface of a product produces a wider viewing angle, increased visual brightness, decreased light bleed, improved assembly and easier use of curved surfaces. LED-display assemblies indicate electronic status from on/off, stop/go, speed, alarm and other indications. Value can be found by creating a single LED assembly to replace light pipes or bulky and costly wire harnesses. Eliminating lightpipes where products have high numbers of indicators can significantly simplify mechanical designs and assemblies.

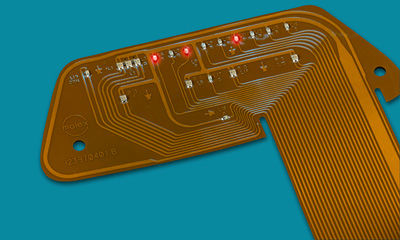

Molex display assemblies may be designed with a large numbers of indicators, and be combined with switches, backers, seven-segment LED-displays or LCDs. Molex's engineering group can help integrate ICs, resistors and other components to enhance or expand the performance and functionality of the displays. A Molex LED-display assembly can reduce a component BOM and improve the quality by providing a complete tested assembly.

Low-profile solution to icon and display backlighting
Helps maximize motherboard PCB spacing, in products where design layouts are tight

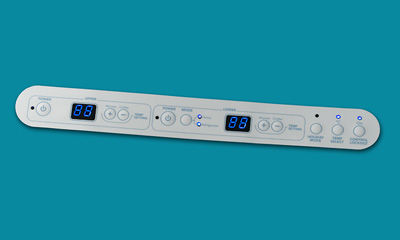

Led-Display Assemblies mounted directly on the faceplate of the product
Cosmetically appealing
Eliminates LED mis-registration

One-piece solution to LED indication
Low-cost solution

Parameter Name	Parameter Value
Type	LED
Applications	industrial
Other characteristics	electronic
