5-digit 7-segment display,
display range -9999 to 99999,
decimal point free selectable
3x LEDs for status / measuring range display
CAN connection: CAN-specification according
to 2.0A / 2.0B / ISO11898 (max. 1 MBaud),
CANopen protocol according to DS301 and
parts of DS 401

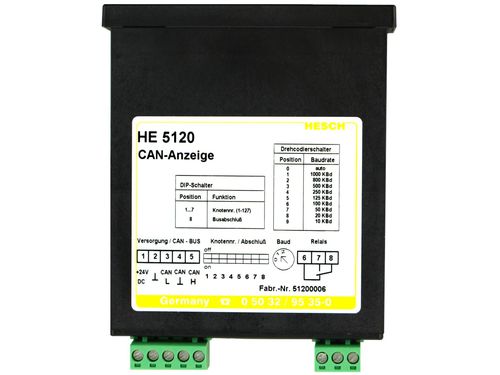

DIP-switch (8-pin) for CAN node address
and switchable CAN bus termination
Coded rotary switch 0-9 for CAN baud rate:
10 kBaud to 1 MBaud,
Option: automatic baud rate recognition
Switching output: 1 relay, potential free
change-over contact (250 V AC / 5 A)

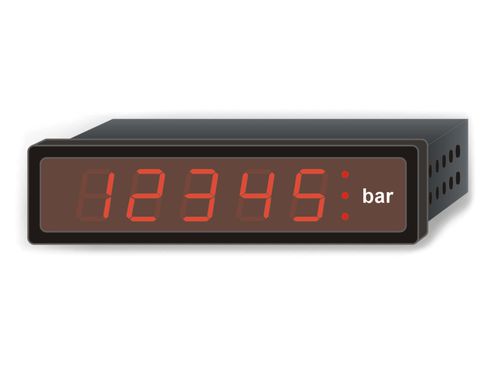

The CAN display HE 5120 is used for the visualisation e.g. of weight and level. The various physical units are identified over the LEDs. The device has a switch contact, which can be used optionally as digital output or limit switch. The CAN bus connection takes place according to ISO 11898. The display with integrated FULL-CAN-Controller supports the transmission according to CAN-specification 2.0A / 2.0B with max. 1 MBaud. It is defined through parameter-setting, which information is displayed from a CAN-Message in which format. The settings of the parameterisation are stored non-volatile.

Parameter Name	Parameter Value
Type	LED
Format	7-segment, 5-digit
Other characteristics	electronic
