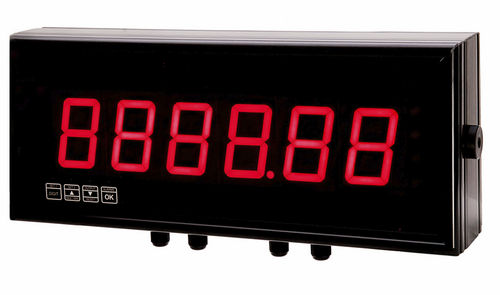

Product Description

These high quality, large character digital displays can be used for crane weight display, process weight display, and all other remote weighing applications. They use microprocessor based technology for high reliability and have a non-volatile memory to store all the calibration data.
Load-Force-Weight Systems

Magtrol Large Digital Displays are used with Load Monitoring Units (LMUs) or signal conditioners (AN Series), as part of a complete measurement system. Magtrol load measuring pins, which measure load and force to provide overload protection, are available for a wide range of Load-Force-Weight, and in various executions and accuracy classes. Combined, these products constitute an ideal safe measurement system for continuous overload monitoring.

Features
•Suspension mounted large LED displays
•Digit sizes: 57, 102, 150, 200, 300 and 400 mm
•Protection class IP 65 (sealed)
•Fully corrosion resistant
•Adjustable brightness
•Power supply: 100 to 240 VAC
(optional 11 to 30 VDC or 48 VAC)
•Input: 0 – 10 V, 0 – 5 V or 0 – 20 mA, 4 – 20 mA
•Fully scalable in kg, t (ton), kN, and other engineering units
•Auto tare function
•Optional voltage (0 – 10 V) or current (4 – 20 mA) output
•Optional RS-232 serial output

Parameter Name	Parameter Value
Type	LED alphanumeric color monochrome
Format	large-format, giant, 4-digit, 6-digit, 1-line, 7-segment
Applications	industrial control temperature measurement remote for sensors safety for weighing devices for pressure measurement for force measurement transducer
Other characteristics	wide-viewing angle electronic programmable high-contrast indoor outdoor precision high-brightness high refresh rate IP65
