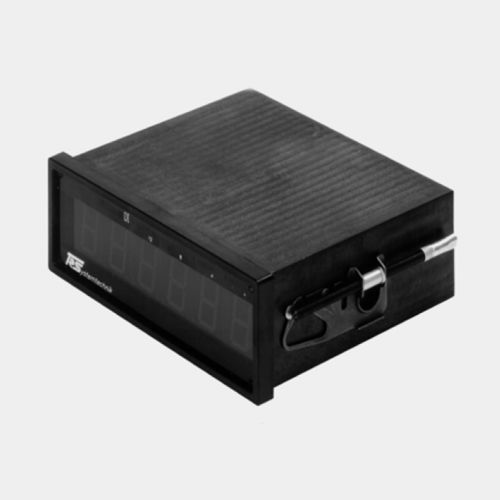

. Art.-No.: 703-40001
. 6-digit display for the mounting of front
. panel
. Ligthbus Decimal point variable
General characteristic data
Operating voltage......................................................24VDC ± 20%
Baud rate...................................................................2,5 Mbaud
Input current ..............................................................120 ma (all segments switched on, without options)
Data transmission .....................................................lightbus
Display ......................................................................7-segment LED, 6-digit, 20 mm high
Standard case...........................................................impact-resistant plastic (DIN43700)
Overall BxHxD...........................................................144 mm x 48 mm x 115 mm without connector
Mounting dimensions front panel (mm).....................138+1mm x 45+0,6mm, thickness of front panel max. 45mm
Weight……………………………………………………approx. 400 g
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
LED
|
| Format |
6-digit, 7-segment
|
| Other characteristics |
panel-mount
|
