Compact display for V/mA
Autom. min / max acquisition
Galvanic isolation with polarity protection
Dimension
· 48 x 24 mm | 45 x 22 mm
Power supply:
· 10...30 V DC
Display 5-digit number, LED

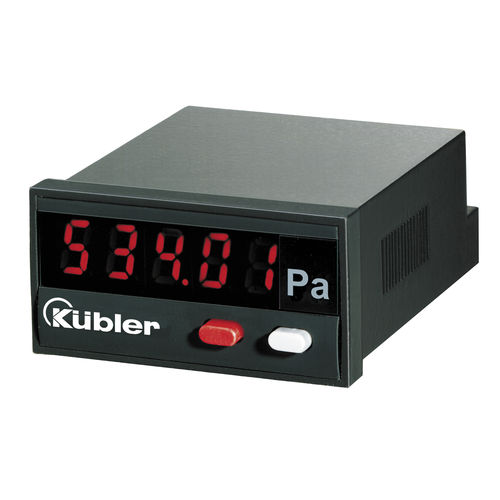

Process display – for standard signals with totalizer, scalable.
Cost-effective standard signal display for front panel mounting with scalable, bright, 5-digit LED display.
Due to 14 bit resolution, accurate measured value display range with minimum and maximum value acquisition and scalable
totalizer for time-controlled summation of the reading.

Product features

Entrance area: 1 current measuring input, 1 voltage measuring input.
Compact display for analog standard signals.
Display range -19,999 to 99,999 with leading zero suppression and programmable decimal point.
Contemporary industrial design.
Fast measuring time of max. 0.1 seconds.

Parameter Name	Parameter Value
Type	LED
Format	5-digit
Applications	industrial
Other characteristics	cost-effective
