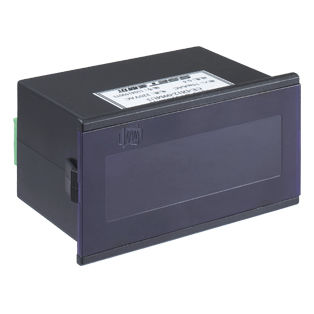

CE-D series 1-element digital display header (Figure 1) has the function of real-time LED digital display and setting the display ratio for the measured electrical parameters.

Accuracy: 0.5class;
Maximum display: 99999;
Power supply: AC 220V;
Variable ratio: 1-50000;
Input range: voltage: 0-500V, current 0-5A;
Operating temperature:-10℃～+50℃;
Storage temperature:-40℃～+70℃.

Parameter Name	Parameter Value
Type	LED
Format	5-digit
Applications	current measurement voltage measurement
Other characteristics	RS485
