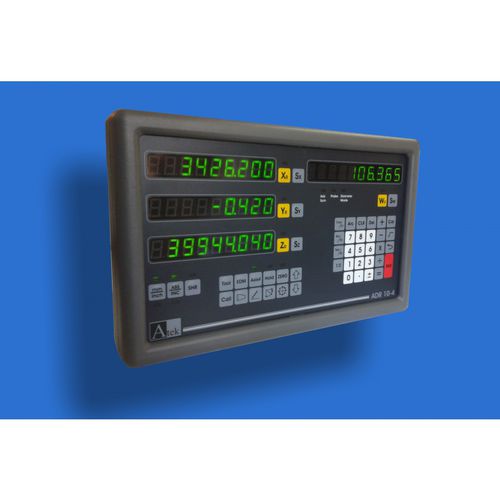

2,3 or 4 axis option (ADR10-2, ADR10-3 or ADR10-4)
Universal Functions: Turning, Milling, Bohrwerk, Erosion, Grinding
Angle measurement
Data transmission with RS232 Port, optional relay output
User defined custom resolution option
8 digit digit + 1 sign digit
Aluminum injection case, easy installation
1000 coordinate memories
1000 tool memories very useful for turning
Linear and partial error correction
D-sub 9 pin socket
5 différent language options: Turkish, English, German, Spanish, Portuguese
Ail ATEK products are %100 designed and manufactured completely in Turkey, with years of
engineering of ATEK Research and Development team.

Ail metalworking machines
Lathe
Milling
Bohrwerk
EDM
Grinding Machines

Technical Spécifications
Number Of Axis - 2, 3 or 4
Display - 8 Digit +1 Sign Digit, Green, Touring (-) Sign
Display Resolution - 0.1 pm, 0.2 pm, 0.5 pm, 1 pm, 5 pm, 10 pm, 25 pm or User can designate as requested
Input Signal - Available Push Pull orTTL A,B,Z (Line Driver A, B, Z, /A, /B, /Z) Incrémental Encoder Signais
Weight - 2,7 Kg
Supply Voltage - 85 - 265 VAC 50/60 Hz.
Storage Temperature - - 25 ~ 65 °C
Opération Temperature - -10 ~ 45 °C
Relative Humidity - %20 - %85
Dimensions (HxWxT) - 202mm x 320mm x 84mm
Body - Aluminum Injection Body
Measuring Limits - - 99999,999 mm ~ 99999,999 mm

Parameter Name	Parameter Value
Type	LED
Format	custom
Applications	relative humidity relay
Length (mm)	202 - 202
Width (mm)	320 - 320
Height	84 mm (3.3071 in)
