LED display 10043747

LED display 10043747

LED display 10043747

About


General Data -

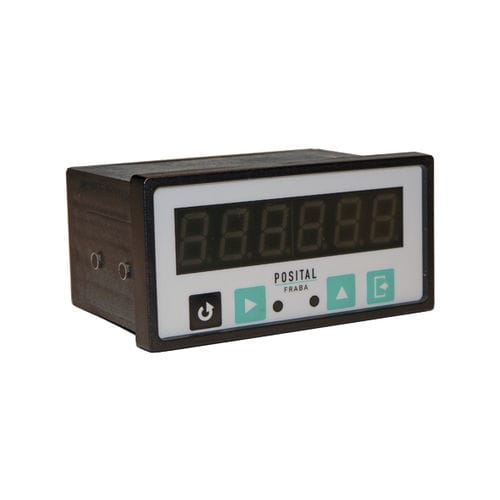

Intro - 8 Digit display in DIN-enclosure 96 X 48 mm, 0/4-20mA / 0-10V Input , All inputs and outputs optically isolated, Serial port for PC based programming
Electrical Data -
Supply Voltage - 8 -26V DC
External Sensor Supply - +Vs
General Data -
Max. Counting Range - -9999…+99999
Input Type - 0-20mA / 4-20mA / 0-10V
Digital Outputs 1…4 - 2 Relay Outputs (Programmable)
Serial Ports - RS485 (Modbus RTU)
Display - 6 Digit, 7 Segment LED, 14.4mm Digit Height
Mechanical Data -
Operating Temperature - 0°C to 50°C / 32°F to 122°F
Weight - 250 g
Sealing - Front: IP54 / Rear: IP20
Panel Cut-Out - 92 x 43 mm



PARAMETERS

Parameter Name Parameter Value
Type
LED
Format
compact
Applications
relay
Other characteristics
  • programmable
  • RS485
  • Modbus RTU
  • external
  • IP54

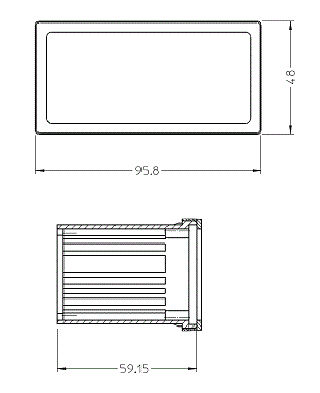

Length (mm)
95.8 - 95.8
Width (mm)
48 - 48
Height
59.15 mm (2.3287 in)
