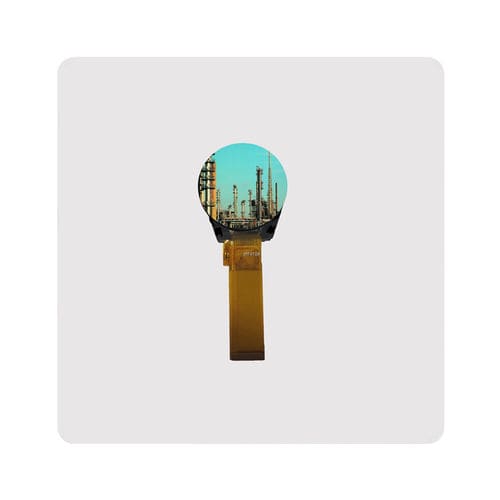

CKT013W101STN-G03 is a round IPS TFT-LCD screen with a 1.3inch diameter Round display with resolution 240x240 pixels. This round TFT display comprises anIPS TFT-LCD panel built with a GC9A01 driver IC that can communicate via SPI/RGB/MCU interface.

CKT013W101STN-G03 is adopted IPS panel, which has the advantage of higher contrast, true black background when the display or pixel is off and wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical), contrast ratio 1100:1 (typical value), brightness 450nits (typical value), All materials meet environmental requirements RoHS/Reach standards.

The power supply voltage of LCM is from 2.5V to 3.3V, the typical value of 2.8V. It can be operating at temperatures from -20℃ to+ 70℃ and storage temperatures from -30℃ to +80℃. The display modules are suited for compact devices like smart gauges, wearable devices, and meter applications. They are also ideal for home automation products, white products, and video systems.

Search keyword: tft 1.3 , tft 1.3", 1.3 tft lcd, 1.3" tft lcd, 1.3 inch tft lcd, tft lcd 1.3, 1.3 tft display, 1.3" tft display, 1.3 inch tft display, tft display 1.3, tft display 1.3", circular lcd, round lcd.round lcd display,round tft lcd, circular，circular tft lcd, circular lcd display

Parameter Name	Parameter Value
Type	LCD/TFT IPS
Format	240 x 240, compact
Other characteristics	RGB SPI MCU round
