LCD module GAS

LCD module GAS

LCD module GAS

About

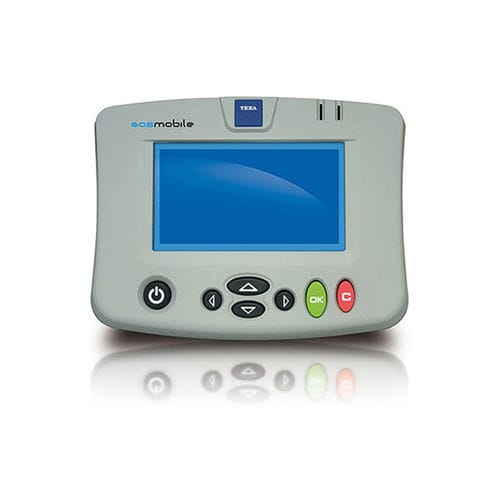

This is a lightweight and compact portable device featuring a high-visibility graphic LCD display used to test all types of engines, running on petrol, diesel or alternative fuels.
A thermal printer integrated in the rear of the unit makes emission test reports instantly available.

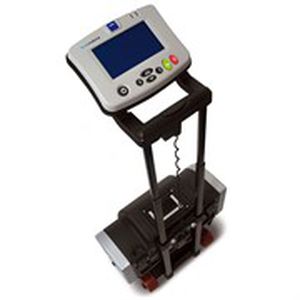

GAS Mobile completes TEXA’s range of products for today’s increasingly strict exhaust gas analysis. Because it dialogues with TEXA’s analysers over a Bluetooth link, it eliminates the need for awkward trailing cables.

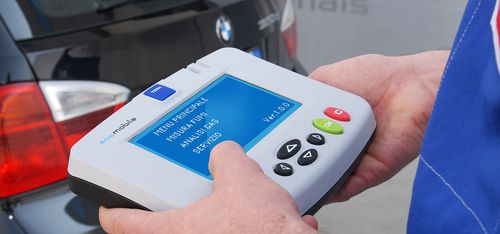

The lithium-ion batteries offer a full day’s autonomy, meaning the device does not need to be plugged into the mains or the vehicle’s power supply, and can be conveniently used inside the vehicle.

TECHNICAL SPECIFICATIONS
PROCESSOR SYSTEM
MicroController Cortex STM32F103VX - 72MHz max freq.
Memory 512 MBytes Flash, 64 KBytes SRAM

OPERATING SYSTEM
EmbOS

Connectors/ Slot
Slot for SD Card
PS2 (keyboard)
RJ45 serial (assistance)
Power jack for wall adapter

BATTERY PACK
lithium 3.7VDC, 5000 mAh, typically
480 minutes of life (varies according to use)

PRINTER
Built-in low consumption thermal printer

DISPLAY
STN LCD graphic display (Blue&W) 240x128
dots, dimensions 170(W)x103.5(H)mm

BLUETOOTH
WT11 radio module by Bluegiga Technologies®

ENVIRONMENTAL
Operating temperature: 0 ÷ 50 °C
Temperature while recharging: - 20 ÷ 60 °C
Operating humidity specifications: 10 ÷ 80 % without condensation

DIMENSIONS
212x162x120 mm

WEIGHT
930 g.



PARAMETERS

Parameter Name Parameter Value
Type
  • LCD
  • graphic
Format
compact
Other characteristics
  • mobile
  • portable
