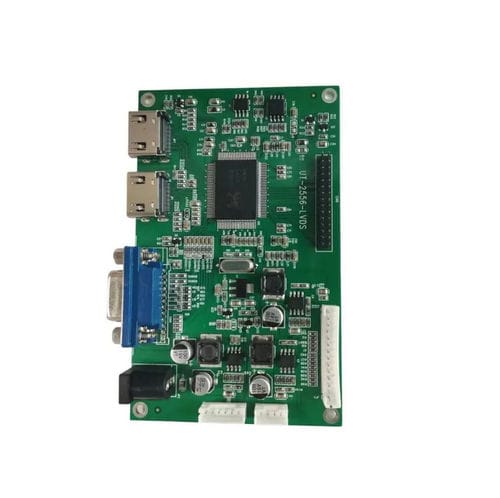

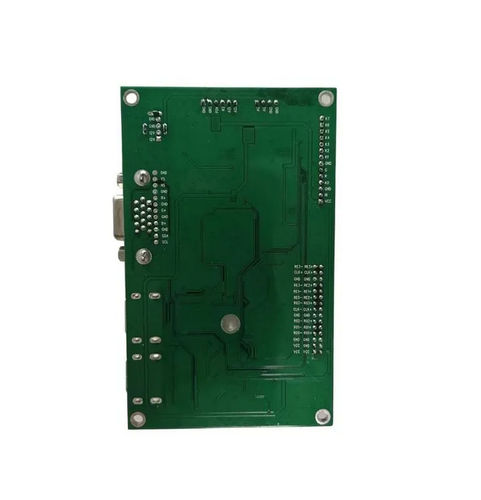

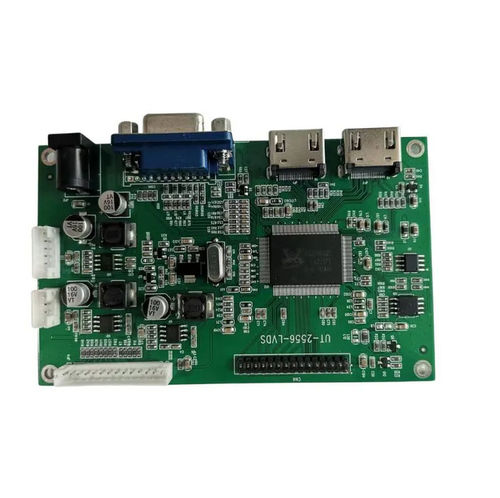

TBJ101HD-01 LCD Scaler Board | Convert LVDS to HDMI, VGA |
Support multiple LCD resolution and screen size |

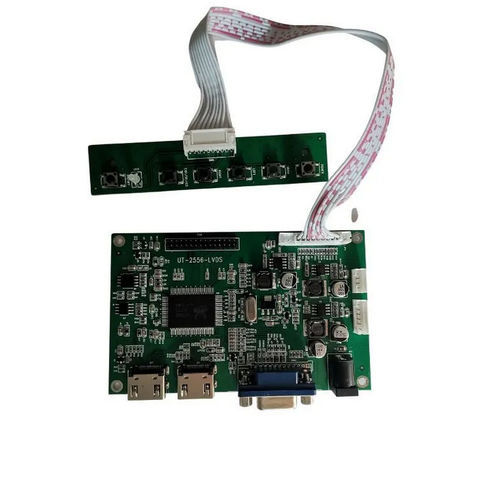

Support button operation, multi-function on Screen Display(OSD) operation, and optional remote control function |
Support a variety of single and dual LVDS display interfaces |
The TFT control board can be compatible with our 7-inch TFT module TTX070BHT-01, 8-inch TFT module TTX080QHT-02, and 10.1-inch TFT module TTX101HHH-01.
The material is RoHS compliant.
Function: TFT LCD Controller
Supply Voltage (V): 12 Typ
Interface: LVDS to HDMI/VGA
LCM SIZE（inch）: Multiple
LCM Resolution supported (pixel): Multiple
PCB (W x H ) (mm): 110.0×68.0
Direct Current (without LCM ) (mA): 350 Typ
LCM connector: 30PIN(ST-TJC8-2.54S)
VGA connector: VGA15 (Female )
HDMI connector: HDMI-019S
Key connector: 10PIN-2.0S
Operational Temperature (°C): -10 ~ +60
Storage Temperature (°C): -20 ~ +70
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Bus |
LVDS to HDMI, LVDS to VGA
|
| Applications |
for automatic controls
|
