The SRMD is designed to provide a prominent display in critical environments. The SRMD takes inputs from critical sensors, and display the parameters in 1” illuminated LCD characters.

Product description

The SRMD is designed to provide a prominent display in critical environments. The SRMD takes inputs from critical sensors, and display the parameters in 1” illuminated LCD characters. The SRMD is sensor agnostic and accepts 0-5VDC or 0-10VDC inputs. However, it is also available to order calibrated with Setra humidity/temperature sensors, ensuring that it is ready to install out of the box, providing quick installation. The SRMD is available in single or dual configuration with a white or nickel bezel, and the LCD characters are available in three colors; red, green, and blue.

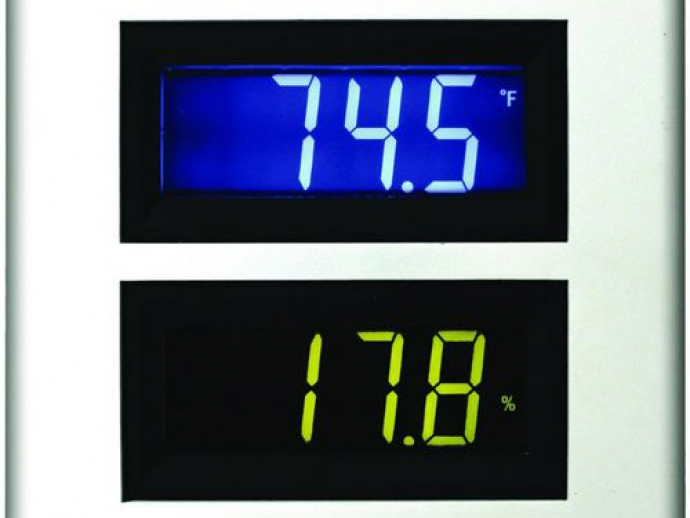

Highly Visible LCD Display - Real-time environmental monitoring is essential in critical spaces such as operating rooms, laboratories or medical manufacturing clean rooms. The SRMD is a display panel which takes sensor information and displays with 1” LCD characters. The SRMD is offered in either a single or dual display configuration with 3 color choices (red, green, blue) so that the end user can clearly see the critical parameters from up to 30’ away.

Installation Without Customization - The SRMD is designed to make things easy for both the installer and the end user. The unit mounts in an off-the-shelf electrical box making the installation simple once the roughin phase of the job is complete. The SRMD accepts either a 0-5 or 0-10 VDC input, can be calibrated for any parameter, and is powered by either 24 volts DC or AC.

Parameter Name	Parameter Value
Type	LCD
Format	compact
Other characteristics	IP54
