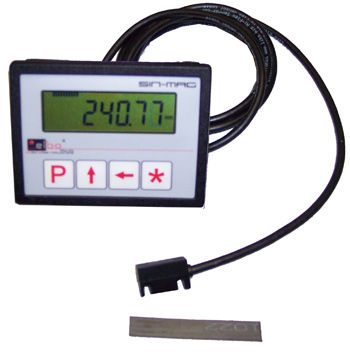

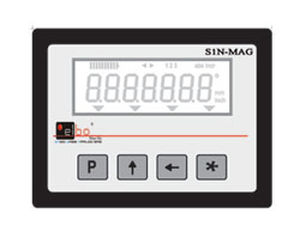

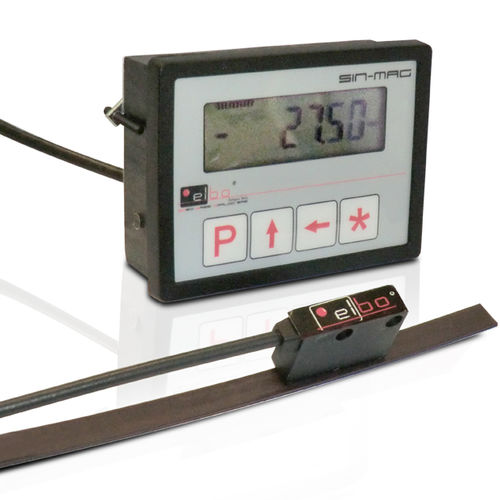

An almost absolute display, independent from the network, for the direct detection of position, for example, on hammer systems. This solution gives the client maximum flexibility thanks to its easy integration

Functions and features
•Battery powered LCD display.
•Connected sensor.
•Mm/inch display.
•Angular display mode.
•Resolution up to 0.001mm
•Display: LCD 7 digit
•Display Mode: Linear, angular, mm/inch
•Input: Magnetic sensor
•Travel Speed: 5 m/s max
•Power Supply: Battery
•Parameters: 3 Offset values, preset, resolution,
•mm/inch, angular display mode
•Operating temperature range: 0°C ÷ +50°C
•Protection: IP60 Front, IP40 Back
•Cut out: 91,5 x 67,5 mm²
•Cable length: 5 m max
•Display: LCD, 14 mm (-999999 ÷ 999999)
•Power supply: Batteria 1,5 V
•Consumption: ~ 700 µA
•Measurement speed: < 5 m/s max.
•Interface: RS 232 (optional)

Parameter Name	Parameter Value
Type	LCD
Applications	position
Other characteristics	RS-232 battery-powered
Length (mm)	47 - 47
Width (mm)	97 - 97
Height	73 mm (2.874 in)
