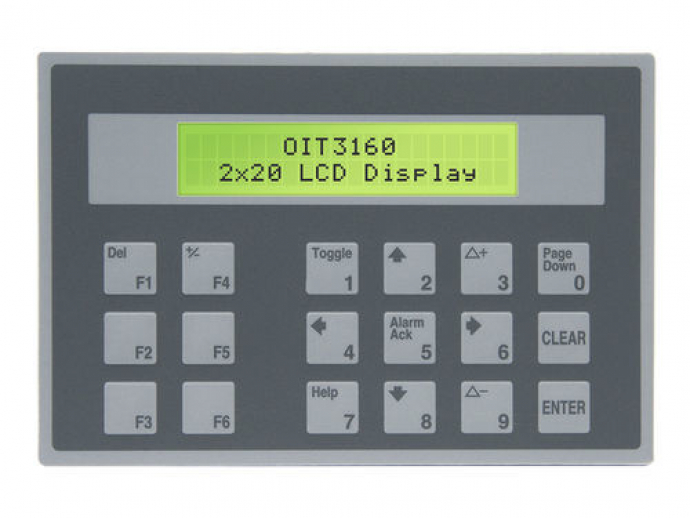

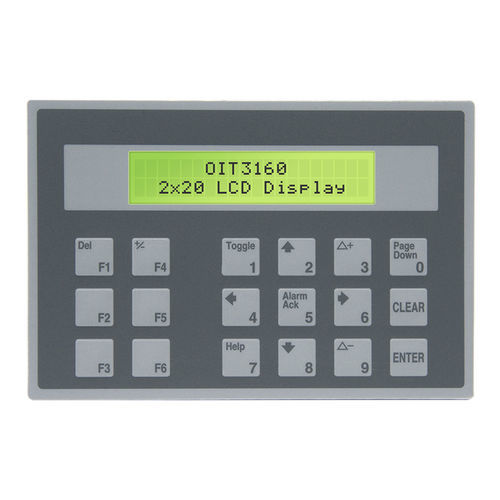

LCD display OIT3160-B00

LCD display OIT3160-B00

LCD display OIT3160-B00

About


Our Alphanumeric OITs are powerful, affordable operator interface terminals. With the ability to communicate with more than 100 brands of PLCs, motion controllers, temperature controllers, and embedded microcontrollers, you can easily create the perfect operator interface terminal for your application.

2 Line by 20 Character LCD Display
Tactile Style Keypad
6 Programmable Keys
1 Serial RS232/422/485 Port

System Audio Internal audio transducer
Serial 1 x RJ45 shielded RS-232/422/485
I/O Ports Power 3 pins terminal block connector, DC power input
Type STN yellow green LCD; 5 x 7 dot matrix
Size 2 line by 20 characters
Viewing Angle (°) 35/40/35/35 (T,B,L,R)
Backlight LED
Display
Backlight Longevity (hrs.) 50,000
Type Tactile dome
Material Polyester
Lifespan 3 million operations
Programmable Keys 6
Keypad
Customizable Key Legend No
Input Voltage 12 ~ 30 VDC
Input Power 2.18 WElectrical
Input Current 91 mA @ 24 VDC
Enclosure Aluminum
Dimensions (W x H x D) 6 x 4 x 1.77 inches [152.4 x 101.6 x 45 mm]
Weight 0.75 lbs [0.34 kg]
Mechanical
Mounting Panel mounting
Operating Temperature 14 ~ 149°F (-10 ~ 65°C)
Storage Temperature -22 ~ 176°F (-30 ~ 80°C)
Relative Humidity 5% ~ 95% (non-condensing)
Rating NEMA4X / IP65
Environmental
Certifications CE / cULus (Class I, Division 2)



PARAMETERS

Parameter Name Parameter Value
Type
  • LCD
  • alphanumeric
  • dot-matrix
Format
5 x 7, 2-line
Applications
industrial
Other characteristics
  • RS-232
  • programmable
  • RS485
  • backlit
  • RS422
  • panel-mount
  • NEMA 4
