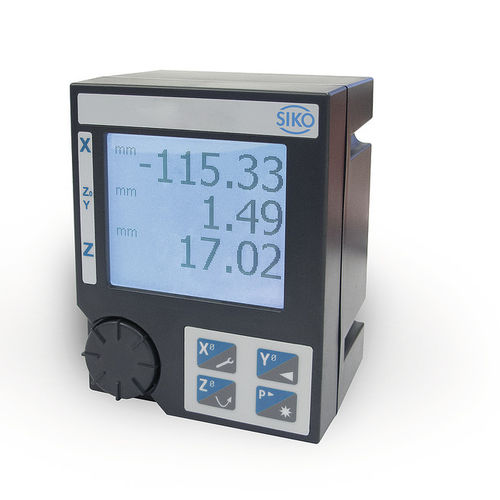

Electronic display MA523/1
Compact triple-axis display with rotary speed function
Profile MA523/1:
4-row, 7 digits and backlit LCD
Up to three incremental measuring systems
Parameter setting with 4 keys and dial

Each axis is individually programmable
Connection for pluggable magnetic sensors MS100/1 or MS500
System accuracy up to 10 μm
Resolution 1 μm with MS100/1
Speed input measurement as an option

Two accuracy classes: 0.01 mm with magnetic sensor MS100 / 1 or 0.05 mm with magnetic sensor MS500

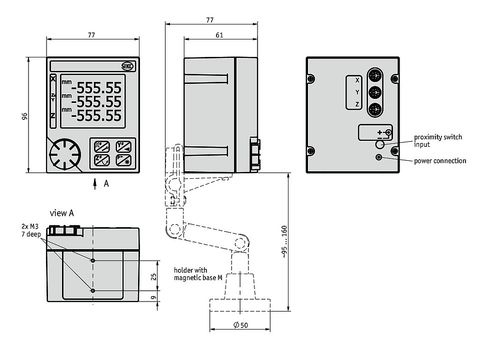

Mechanical data
Feature - Technical data - Additional information
Housing design - plastic mounting housing -
Accuracy class - 0.01 mm - MS100/1
- 0.05 mm - MS500
Weight - "0.2 kg -
Electrical data - -
Feature - Technical data - Additional information
Operating voltage - 10 ... 30VDC - reverse polarity protected, hollow plug 4 mm/1.7 mm
- 100... 240 V AC - wall plug transformer included in the delivery
Current consumption - -150 mA -
Inputs - PNP proximity switch - jack plug 3.5 mm, 3-pole, stéréo (not included in the delivery)
- 3x sensor connection - Mini-DIN plug, 6-pole, Socket (for magnetic sensors MS100/1 and MS500)
Display/display range - 7-digit, LCD - 4 rows, white background illumination -999999 ... 9999999
System data - -
Feature - Technical data - Additional information
Resolution - 0.001, 0.01, 0.1 mm -
- 160x128 pixels - display
Travel speed - *5 nVs -
Ambient conditions - -
Feature - Technical data - Additional information
Ambient température - 0 ... 50 5C -
Storage température - -10... 60 =C -
Relative humidity - £80 % - condensation inadmissible
EMC - EN 61000-6-2 - interférence résistance / immission
- EN 61000-6-4 - emitted interférence / émission
Protection category - IP50 - EN 60529

Parameter Name	Parameter Value
Type	LCD
Format	compact, 160 x 128
Other characteristics	electronic backlit
