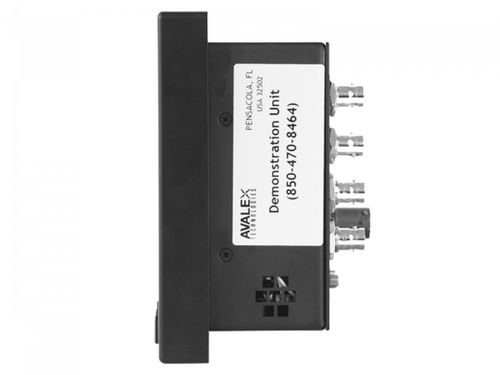

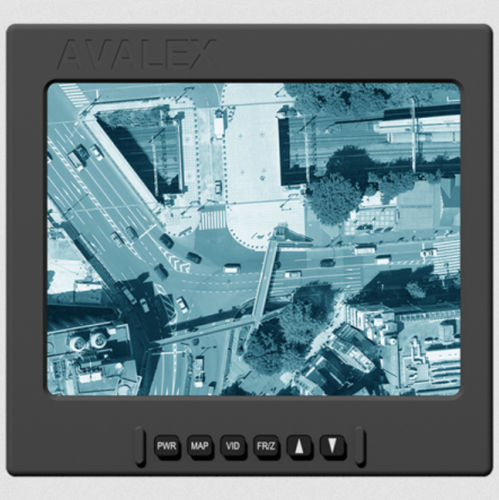

When space or power are at a premium, look no further than the AVM4065 for your standard definition video needs. Offering three video inputs and one video output, as well as VGA, a full-color, sunlight-readable 4:3 aspect ratio LCD, and optional NVIS compatibility in a compact 6.5″ diagonal design, this display is ideal for the playback of crisp video, maps, or computer graphics in cramped quarters. A scant 9 watts of power consumption makes this display an economical addition to an integration requiring power-hungry processors or mission computers. The 6-button lighted bezel offers simple one-touch control of video sources, computer graphics, and system menus.

The AVM4065 has supported military, law enforcement, and paramilitary operations for more than a decade. End users and integrators trust the display’s solid engineering, which provides robust structural reliability in a minimal footprint.

Features

VIDEO

RS-170 video inputs on the AVM4065 can be used to view multiple composite sensor video feeds or can be configured to accept S-Video and RGsB video signals.

FREEZE / ZOOM

The freeze feature on the display allows operators to quickly capture a still image of important events for review. The digital zoom feature enhances an operator’s ability to pick out distant objects. Both of these features can be combined into a single button press.

MAPPING

The VGA input on the AVM4065 can display computer input resolutions of 640x480. Custom resolution support is available upon request.

Parameter Name	Parameter Value
Type	LCD color
Format	compact, custom, 640 x 480
Applications	control power
Other characteristics	VGA sunlight-readable
Height	5.8 in
