Description

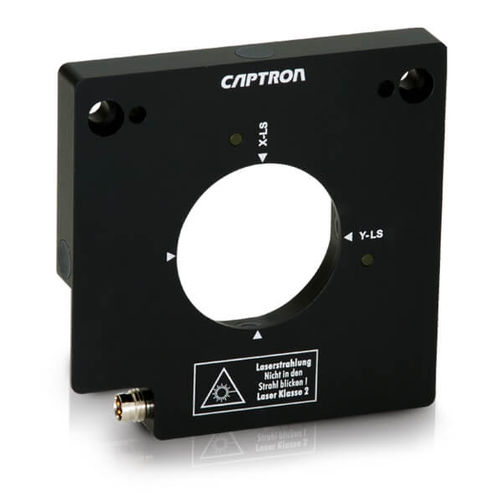

TCP measuring instrument 40mm

•Especially compact construction
•Reduced mounting and calibration effort
•Fitting holes for exact positioning
•Adjustment in X-, Y- and Z-axis

APPLICATION: PLANTS AND MACHINES | INDUSTRIAL AUTOMATION

•Fitting holes for exakt positioning
e. g. reduction of the mounting effort in serial production
•Adjustment in X-, Y-, and Z-axis
Both axes are measured at the intersection
•Protective kollar
Protects the optics against pollution and damages
•Simple installation
Minimal wiring effort

Parameter Name	Parameter Value
Measured physical value	laser, TCP

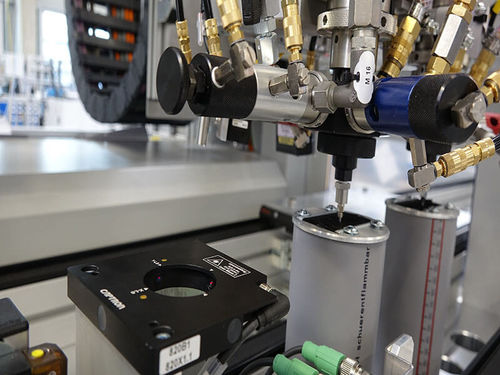

Applications	for robots
Options	multi-point reference value
Temperature	Min.: -10 °C (14 °F)Max.: 50 °C (122 °F)
Voltage (V)	12 - 30
