- Retractable feet
- Back mounting

• USE
- Light and portable
- Robust for use in any kind of conditions, even the most extreme ones

• AUTONOMY
- Powered by standard AA batteries only, its low consumption allows a long autonomy

• FUNCTIONS
- Metric or imperial unit
- Identification of values out of tolerance
- Storage of MAX, MIN or MAX-MIN values during dynamic measurement
- Combines analogue display and analogue indication
- Zeroing of the display facilitating measurements by comparison
- Special ZOOM display allowing a more detailed visualization of the analogue scale to facilitate precise adjustment
- Up to 7 measuring ranges or automatic switching according to the measured value

Units - mm / in
Standard - DIN 32876
Max. perm. errors - At 20°C and relative humidity of ≤ 50 %:
analogue display: 1% ± 0,1 µm
Digital display: 1% ± 0,1 µm
Material - Resistant synthetic material
Dimensions - Housing: 100 x 170 x 38 mm
Screen: 70 x 62 mm
Digit: 10 x 5 mm
Degree of protection - IP63
Particular characteristic(s) - At 20°C and relative humidity of ≤ 50 %:
Zero drift and signal amplification: ≤ 0,005 %/° C
Display frequency limit with respect to input signal: 10 Hz
Weight - 500 g

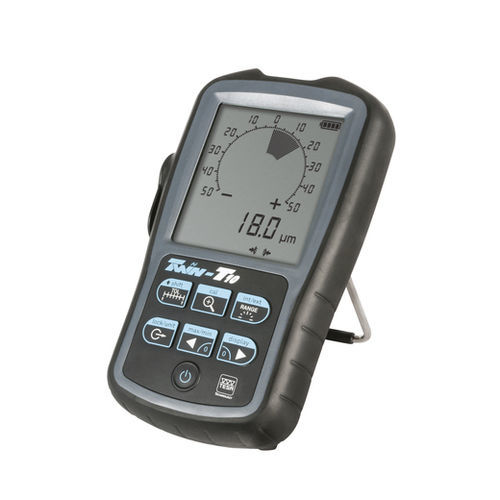

Included in delivery - TWIN-T10 display unit
4 AA batteries
Instruction manual including declaration of conformity
Data output(s) - TLC

Parameter Name	Parameter Value
Format	large-format
Other characteristics	high-contrast portable battery-powered
