About

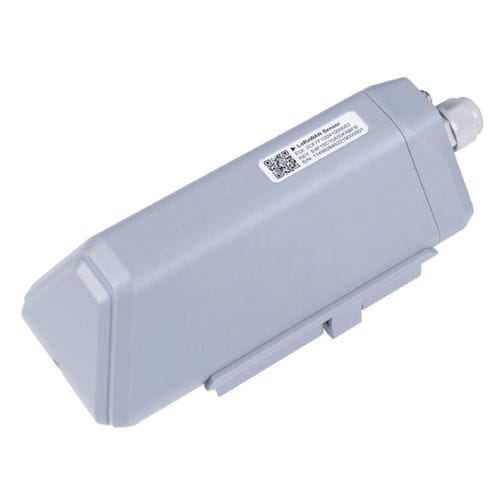

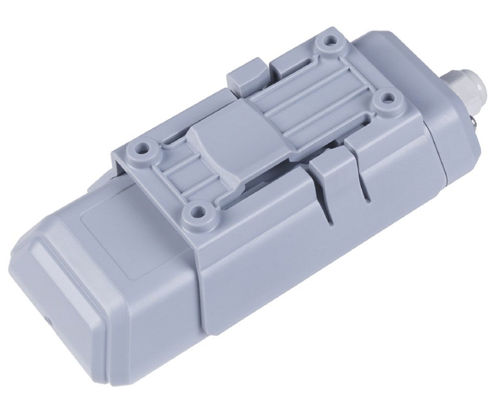

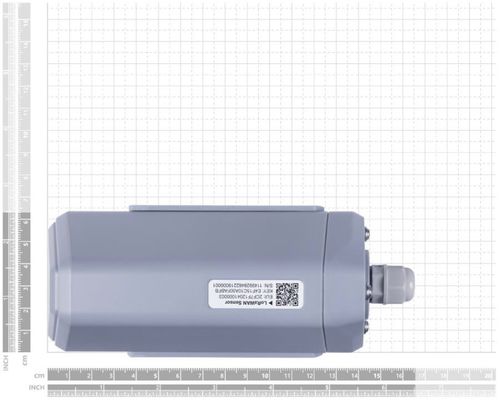

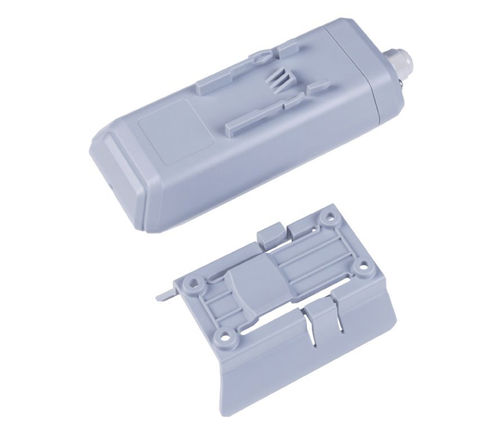

SenseCAP S2100 - A battery-powered IP66 wireless data logger/ DTU supports RS485/Analog/GPIO sensors, equipped with built-in Bluetooth and APP service for OTA configuration and remote device management.
Features
Strong Compatibility with different Sensors: supports all MODBUS-RTU RS485/Analog(4~20mA/0~10V) / GPIO(level/pulse) sensors.
Compatible with Worldwide LoRaWAN® Networks: Compatible with LoRaWAN® V1.0.3 protocol and can work with LoRaWAN® gateway. (support the universal frequency plan from 863MHz ~928MHz).
Long Range & replaceable Battery powered: With LoRaWAN® wireless transmission, S2100 supports 19Ah built-in battery and external 12V DC to supply devices, and ultra-wide-transmission range of 2km in urban scenes and 10km in line of sight scenes.
Designed to Use in Harsh Environments: -40℃ ~ 85℃ operating temperature and IP66 rated enclosure, suitable for outdoor use, high UV exposure, heavy rain, dusty conditions, etc.
Remote configuration and management: Seeed provides SenseCAP Mate APP and SenseCAP Portal, allows users to remotely manage data and configure.
Application
Precision Agriculture, Industrial Manufacturing, Smart Building
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Connector type |
Bluetooth, Modbus, RS-485, MQTT, LAN WLAN, LoRa
|
| Other characteristics |
|
