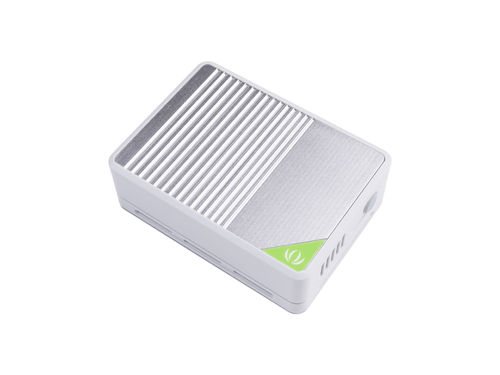

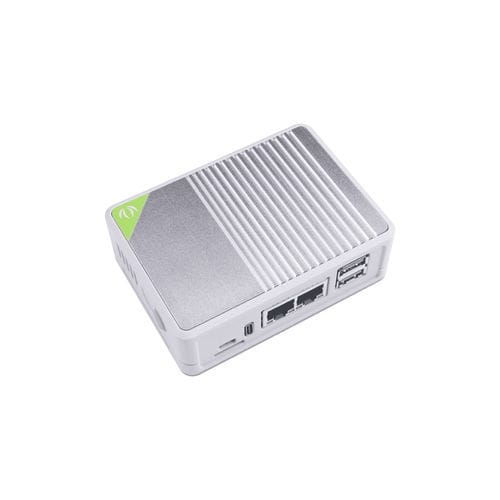

The Mini Router is pre-installed Seeed's custom OpenWRT system, the hardware is equipped with dual Gigabit Ethernet ports and dual USB 3.0 ports, as well as a Raspberry Pi Compute Module 4 with 2GB RAM and 32GB eMMC. The full system makes it suitable for soft router applications while keeping the hardware to a minimum.

Features

Fast boot times and smooth overall experience: Powered by Raspberry Pi Compute Module 4 and 2GB RAM/32GB eMMC

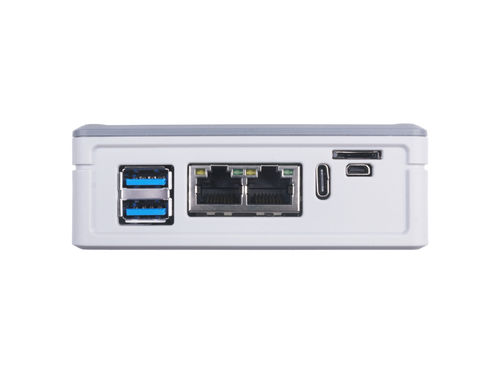

Compact and highly integrated: 75x64x21mm in size, with dual Gigabit Ethernet ports and dual USB3.0 ports
Highly scalable with rich IO peripherals: dual Gigabit Ethernet connectors, Micro-SD card slot, micro-HDMI interface, USB 3.0, MIPI CSI, MIPI DSI, etc.

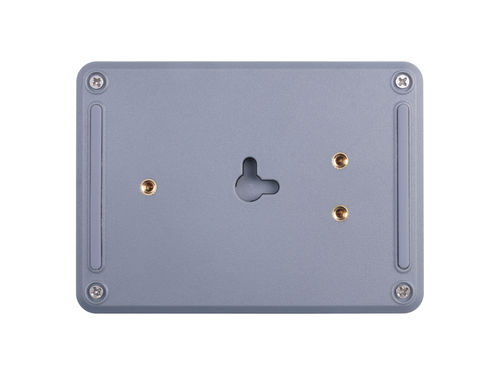

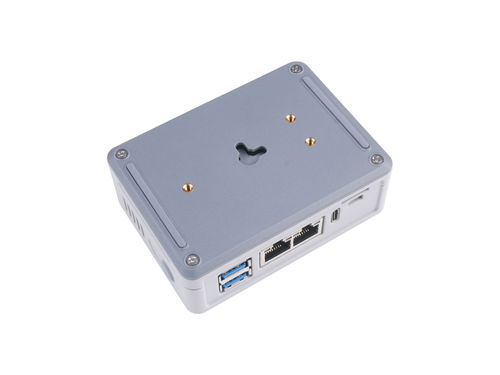

Easy to deploy with stability: DIN rail mount and keyhole slot allow you to hang it anywhere
Pre-installed OpenWRT firmware: Out of the box, can easily implement software router applications

Description
OpenWRT Pre-Installed

The Compute Module 4 comes with OpenWrt firmware pre-installed out-of-the-box. This means you just need to unbox the package, take out the board, connect to your existing home network and have your own mini router!

Parameter Name	Parameter Value
Network	network LAN gigabit Ethernet OpenWrt USB
Mounting	DIN rail integrated box
