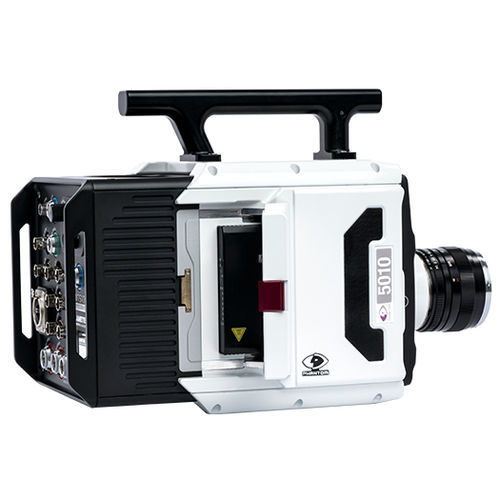

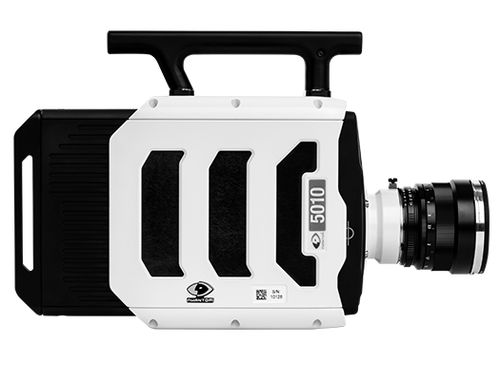

The Phantom TMX 5010 provides extreme frame rates utilizing our newest technology, the back side illuminated high-speed sensor. This is one of our most versatile, full featured cameras making it ideal for a wide variety of applications.

The Phantom TMX 5010 is our entry level TMX back side illuminated (BSI) camera. This model utilizes the same high-speed sensor as other TMX models but is ideal for laboratory and application settings where 50Gpx/second throughput offers significant application flexibility and other powerful features such as enhanced sensitivity, memory capabilities, and a larger resolution at high frame rates can take research to the next level. Universities and other education institutions will benefit highly from the versatility of the TMX 5010.

BSI technology provides increased sensitivity allowing experiments to use lower exposure times and less supplemental lighting. Phantom operators can reach 95 ns minimum exposure with the FAST option, eliminating motion blur. The FAST option feature also allows the TMX 5010 to reach high end speeds of up to 1.16M FPS at reduced resolutions.

Key Features
•BSI technology gives high Quantum Efficiency
•12-bit depth
•User profiles
•10Gb Ethernet for fast download
•Programmable I/O - Assign and define camera signals

What's in the box?
•400 W Power supply with XLR extender
•Ruggedized ethernet cable
•BNC cable
•Printed Manual
•Phantom PCC software
•Sturdy Pelican case and customized foam

Parameter Name	Parameter Value
Applications	for scientific applications for the automotive industry laboratory for military applications
Technology	digital
Spectrum	full-color, monochrome
Sensor	CMOS
Interface	Ethernet
Resolution level	1280 x 800
Resolution	1 Mpx
Other characteristics	high-speed
