Delivers more vibration damping than our existing products by employing new material for the spider.
It also provides backlash-free torque transmission and superior shock absorption at servomotor drives.
・Applicable shaft diameter ：Φ12mm～Φ42mm

Features
・Excellent for vibration resistance at servomotor drives and shock absorption during startup and stopping.
・With the combination of the optimally designed spider and hub, this Jaw-Flex Coupling series is capable of transmitting torque without backlash.
・You can choose from between two types of spiders: 98A excellent for vibration damping; and 64D with high torsional stiffness and wear resistance.

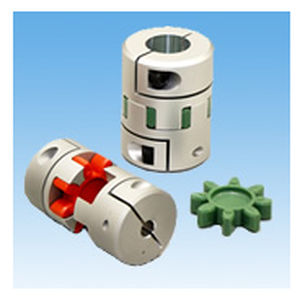

・Simply constructed with two hubs and one spider, uses a clamp shaft coupling method, making this coupling extremely easy to install.
・Available for Taper-Lock Series. Contact a Tsubaki representative.

Parameter Name	Parameter Value
Type	jaw elastomer
Product applications	transmission shaft
Other characteristics	backlash-free with elastic sleeve
Torque (Nm)	60 - 810
