Torques
0,7–12,5 Nm
Properties

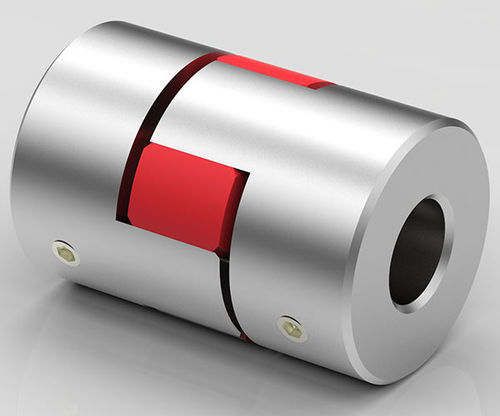

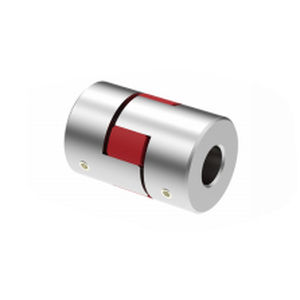

miniature jaw coupling
low-cost version with set screws
for shaft diameter: 3–14 mm
Applications/Specific features
shaft-/shaft-connections
plug-in, hubs are in aluminium

• EWJT: cost-effective version with set screws
• EWJTC: standard version with radial clamping hub
• plugable, oscillation dampening

Parameter Name	Parameter Value
Type	jaw elastomer
Product applications	shaft
Other characteristics	miniature
Installation system	flange
Torque (Nm)	0.7 - 12.5
Rotational speed (rpm)	13000 - 27000
