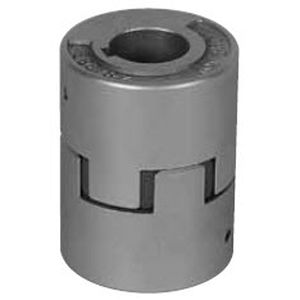

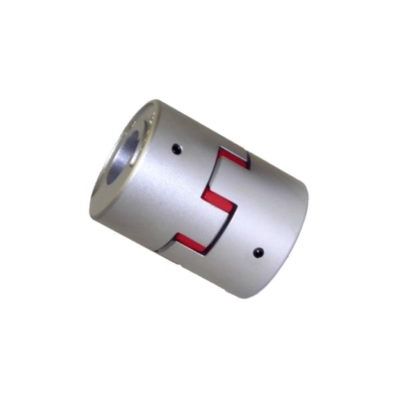

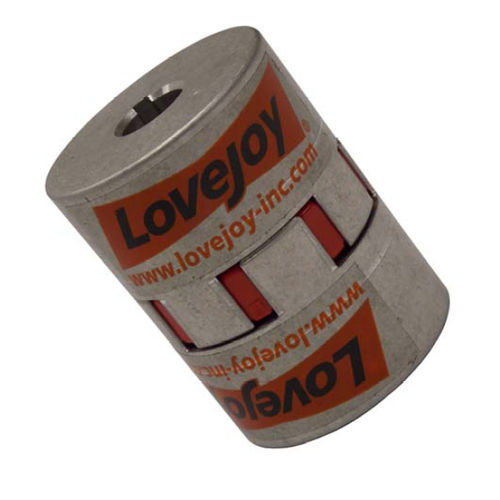

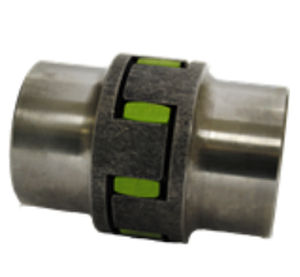

European standard shaft coupling
Improved torsional softness & angular misalignment capability (up to 1.3°)
Fail-safe (will still perform if elastomeric “spider” fails)
No metal to metal contact
Resistant to oil, dirt, sand, moisture, and grease

Design Configurations

Standard Configuration – 2 Standard Hubs, 1 Elastometric Spider
Double Bolt (CJDB) – 2 Shaft Hubs, 2 Jaw Rings, 1 Elastometric Spider
Single Bolt (CJSB) – 1 Shaft Hub, 1 Jaw Ring, 1 Standard Hub, 1 Elastomeric Spider
Large Flange to Hub (CJLFH) – 1 Standard Hub, 1 Large Flange, 1 Elastometric Spider
Double Large Flange (CJDLF) – 2 Large Flanges, 1 Elastometric Spider
Small Flange to Hub (CJSFH) – 1 Standard Hub, 1 Jaw Ring, 1 Elastometric Spider
Double Small Flange (CJDSF) – 2 Jaw Rings, 1 Spider
Spacer Coupling (CJSPC) – 2 Standard Hubs, 1 Spacer, 2 Elastometric Spiders
Drop-out Spacer (CJDSPC) – 2 Standard Hubs, 2 Jaw Rings, 1 Spacer, 2 Spiders

Parameter Name	Parameter Value
Type	jaw elastomer torsionally flexible
Product applications	for shafts flange
Other characteristics	misalignment correction double large
Installation system	sleeve
Torque (Nm)	990 - 990 7 - 7
Rotational speed (rpm)	1.2 - 19000
