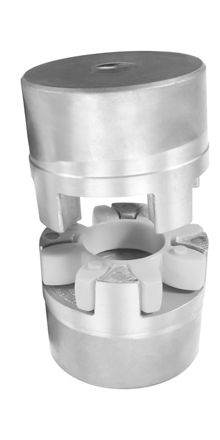

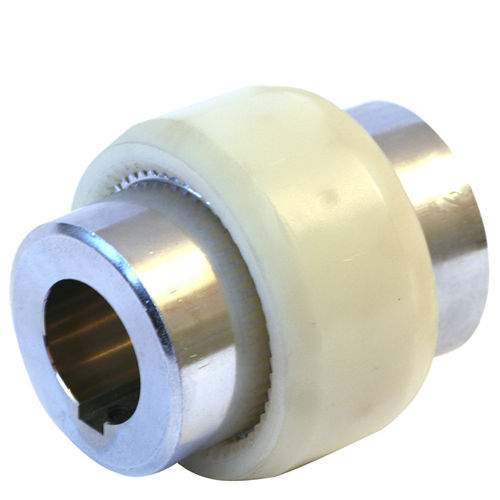

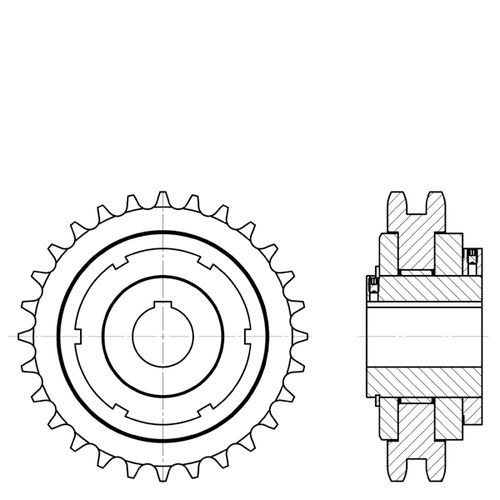

Torque LimitersTorque Limiter Chain CouplingsChain CouplingsCurved-Tooth Gear CouplingsJaw Type CouplingsCustomizing of our standard products acc. to drawing andcustomer requirements:- Finished bore acc. to ISO fit H7- Keyway according to DIN 6885/1- Thread for set screw and fixing hole Chain CouplingsIn addition to our standard range, chain couplings are also availablein other sizes and in stainless steel - please inquire.Jaw Type CouplingsOur standard range offers couplings for maximum speed of3.300 - 22.200 min-1 and max. torque of 15 - 4.800 Nm.For applications requiring higher torques, gear rimswith hardness of 95-98 Shore A are available.

Parameter Name	Parameter Value
Type	jaw chain curved-tooth gear
Other characteristics	custom-made
Torque (Nm)	800 - 800 15 - 15
Rotational speed (rpm)	3300 - 22200
