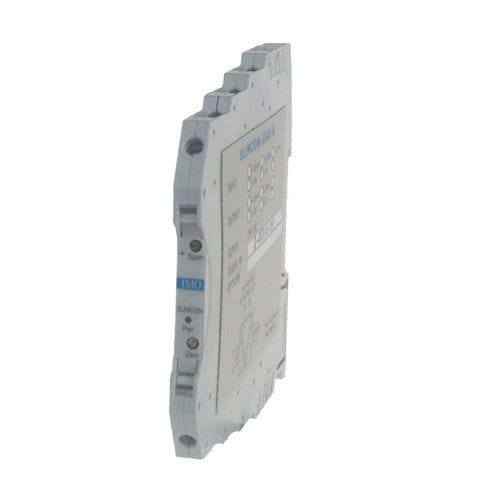

Signal Converter - Isolator
24VDC, Body Width 7.2mm
Configurable Input, mA or V Configurable Output mA or V

The SLIMCON-6 family of Isolating Signal Converters can accept a range of inputs including 4-20mA and voltage signals. The unit produces high level DC output of either voltage or current. The input and output of the unit can be reconfigured using the built in switches together with the zero and span adjustment potentiometers. The unit can be powered by any DC voltage between 18 and 30Vdc (22V at least required to drive into 500 ohms). The instrument is packaged in an ultra slim 7.5mm wide enclosure which can be mounted on standard TS35 DIN-rail.

Isolation Details
The SLIMCON has full 3 port isolation of 1000V between the Input Stage, Output Stage and Power Supply for functional reasons.

The instrument should be carefully inspected for signs of damage which may have occurred in transit. In the unlikely case that damage has been sustained, DO NOT use the instrument, but please retain all packaging for our inspection and contact your supplier immediately. The instrument comes with the following i

Parameter Name	Parameter Value
Signal type	universal
Associated function	isolator
Other characteristics	DIN rail
