SINGLE ACTING SERIE H CYLINDERS

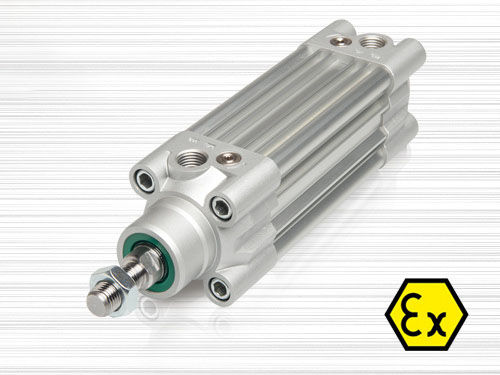

Artec’s SERIE H range of cylinders in accordance to ISO 15552 standard now include also the single acting version, both with front spring (HSM) and with rear spring (HSEM).
From bore 32 up to 125 mm, standard strokes available are from 25 up to 160 mm for HSM version and from 25 up to 80 mm for HSEM version.
Single acting is fundamental in applications where -for safety reasons- an immediate return from the working position is required, if an interruption in the compressed air supply occurs.
ISO 15552 Cylinders
•Available in bores from Ø 32 to Ø 125 mm
•Double acting or single acting version
•High temperature execution on request
•Tandem executions on request
•Aluminium profile with slots for magnetic sensors
•On request, in accordance to ATEX Directive 2014/34/EU classification II 2 GD c T4
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
pneumatic
|
| Technology |
|
| Configuration |
|
| Material |
aluminum profile
|
| Norms |
ISO 15552
|
| Applications |
high-temperature
|
| Other characteristics |
|
| Stroke (mm) |
25 - 160
|
| Force (N) |
415 - 6881
|
| Pressure |
Max.: 10 bar (145 psi)Min.: 1 bar (14.5 psi)
|
| Bore |
Max.: 125 mm (4.92 in)Min.: 32 mm (1.26 in)
|
| Ambient temperature |
Max.: 150 °C (302 °F)Min.: 0 °C (32 °F)
|
