Features
Real-time pressure display in unit: Bar or MPa
14-segment LED display
Button programming, easy operation
Max. 5 relays control independently, time-delay function
Switchable analog output
Record the Max. pressure during operation(button for clearing up)
Support back, rail, cover and joint mounting
Hardware wrong operation protection
Intrinsically safe products conform to GB3836.1 and GB3836.4 standards, and have explosion-proof certification, Exia mark is Ex ib IIA T6 Gb.
Modbus communication

Introduction

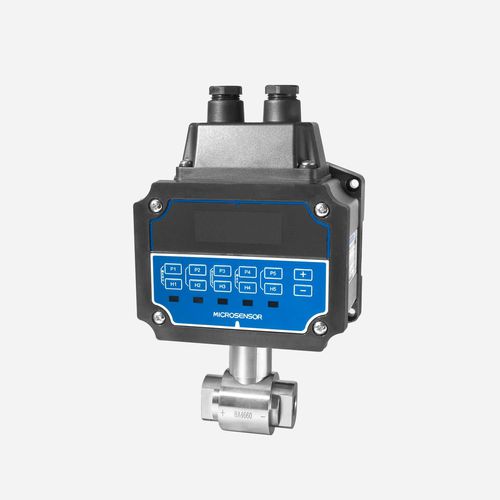

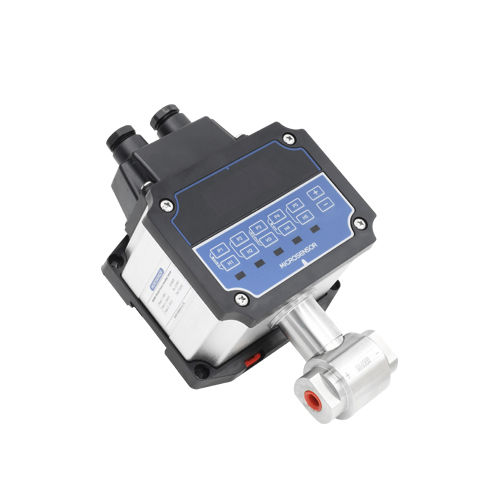

MDM4881 Differential Pressure Transmitting Controller is a digital meter integrating pressure measurement, display, transmitting and control. It adopts the internationally advanced ARM processing chip.

By compensation and adjustment of the sensor, MDM4881 can achieve precise measurement, quick response & control of multiple relays. The controller supports peak value record and action delay, providing 4 digit LED display, easy for reading.

Multiple buttons makes the operation easier and more convenient. Either current or voltage output signal is optional. It supports back mounting, rail mounting, cover mounting and joint mounting. Whole product protection is IP65.

MDM4881 supports 5-relay + 1-analog output. It can be applied for long distance pressure measurement and control in the equipment automatic pressure detection, action control and water level alarm etc. It is also a preferred choice for working fields where request high frequency / high accuracy switchover or mechanical pressure relays is incompetent.

Parameter Name	Parameter Value
Other characteristics	IP65 transmitting differential smart digital
