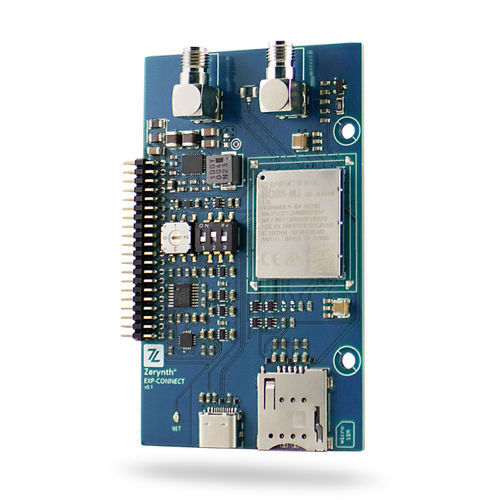

The EXP-CONNECT expansion board enables you to monitor your assets, industrial machines, or devices where WiFi and Ethernet connectivity is not available. This allows you to receive real-time notifications for critical events. You can easily add GPS and GSM (2G)/ NB-IoT capabilities to your IoT application or prototype by using this board.

The Zerynth SIM card is included with the product. It can be used with the Zerynth Device Manager Cellular plan allowing worldwide NB-IoT and 2G coverage. Zerynth SIM management is fully integrated in the Zerynth Device Manager to allow an easy and fast device setup while improving the security of your IoT architecture.

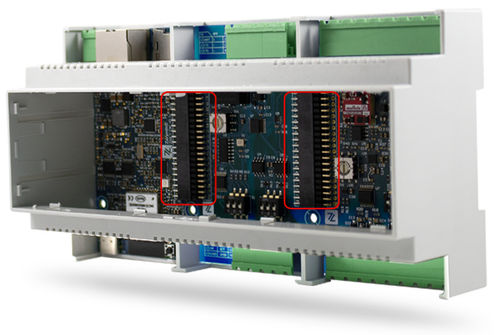

The Zerynth hardware platform supports DIN rail enclosures’ compatibility and enables development of industrial IoT applications. The development boards can be paired with several Expansion boards using DIN rail enclosures that have a width of 3, 6, 9, or 12 DIN modules.

• Quectel BG95-M3 modem with support for LTE Cat M1/Cat NB2/EGPRS.

• Integrated GNSS GPS.

• MicroSIM Slot.

• Zerynth SIM card.

• GPS and GSM/NB-IoT Antennas: 2 SMA connectors.

For more information about the technical specifications, please refer to the User Manual.

Parameter Name	Parameter Value
Bus standard	PCIe
Bus	LAN, Ethernet, GPS, GSM
Applications	industrial IoT
