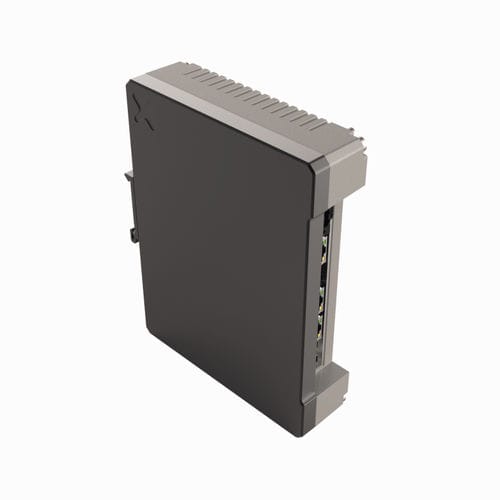

TX700 HMI/PLC Series

Quad-Core IOT Gateway — CODESYS V3 PLC with WEB VISU

DIN Rail Device for the Control Cabinet

1 RJ45 Ethernet port with 10/100/1000 Mbit
2 RJ45 Ethernet ports with 10/100 Mbit
1 serial interface (RS232, RS485, RS422)
2 USB host ports
1 SD card slot

Technical Data
Product series - TX700
Device type - Cloud Gateway, Control
Protection class - IP20
Interface - RS232, RS485, 3 × RJ45
Radio interface - Optional erweiterbar
Fieldbus master - PROFINET, EtherNet/IP, Modbus TCP, Modbus RTU, CANopen, SAE J1939, EtherCAT
Fieldbus slave - Modbus TCP, Modbus RTU
Programming - CODESYS V3

Parameter Name	Parameter Value
Type	IoT
Network	USB Ethernet EtherNet/IP TCP serial RS232 Modbus Modbus RTU ProfiNet CANopen Fieldbus
Other characteristics	DIN rail PLC slave
