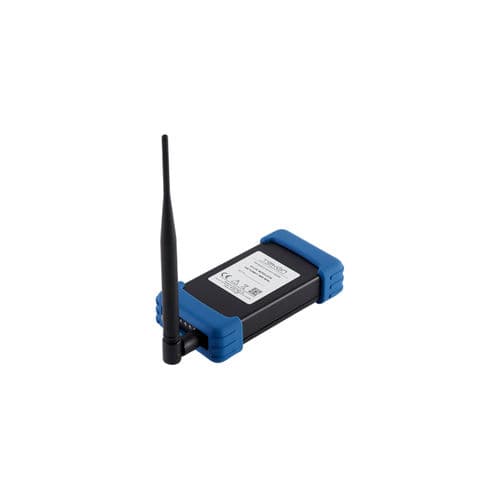

Wireless Gateway DUOS is an easy-to-use solution specially designed to create a network of physical data monitoring, such as: temperature and relative humidity. This device is compatible with all Wireless System DUOS, supporting up to 55 DUOS transmitters, real
time transmission of physical data, as well as RF signal strength and battery level.
It could be connected through Serial Modbus RTU to any PLC, Temperature controller, SCADA, HMI or to a PC using our Software Tekon Datalogger/ Configuration Software.

KEY FEATURES
SCALABLE NETWORK
SCALABLE UP TO 55 DUOS TRANSMITTERS
MULTIPLE NETWORKS SIMULTANEOUSLY
UP TO 12 REPEATERS IN SERIES
UP TO 4KM OR 2KM DISTANCE (LoS)
RANGE OF 868MHZ AND 915MHZ OR 2.4GHZ
AUTOMATIC MESH NETWORK MANAGEMENT
AES KEY DATA ENCRYPTION 128 BITS
SERIAL MODBUS RTU COMMUNICATION
RS485
EASY TO CONFIGURE
SIMPLE, INTUITIVE AND FREE CONFIGURATION SOFTWARE

Parameter Name	Parameter Value
Type	IoT
Network	wireless serial Modbus RTU
Other characteristics	PLC
