For APM remote monitoring with Trumeter Cloud online dashboard

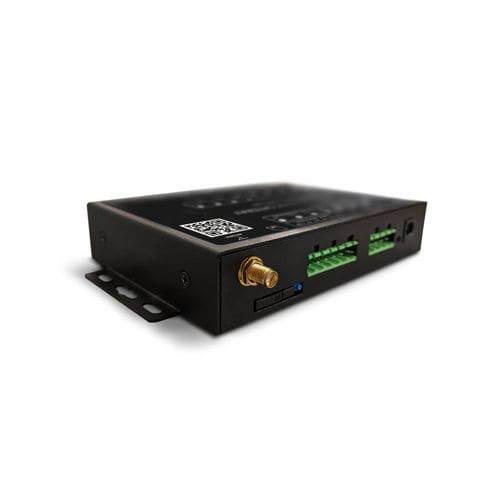

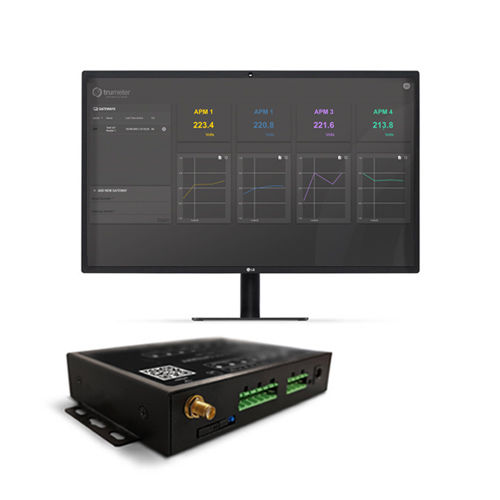

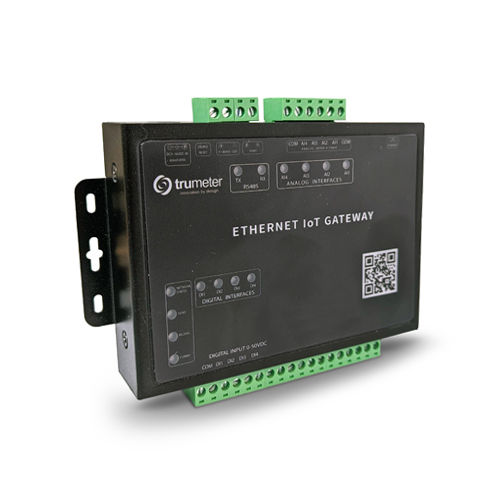

The IoT Gateway with Trumeter Cloud provides a remote monitoring solution for your APMs, with a powerful feature set in a cost effective package.

For use with the entire APM range, the IoT Gateway instantly gives you the ability to remotely monitor readings and status of your systems, as well as real-time alerts via email and SMS. The IoT Gateway is plug and play out of the box and includes a free access to the Trumeter Cloud dashboard.

Go to Trumeter Cloud Pricing Plans to see the full range of options and features.

Benefits include:

Subscription to Trumeter Cloud Dashboard.
Remote monitoring of up to 4 APMs via 4G or Ethernet connection.
Email and/or text message on alarm conditions.
Exportable data securely stored in the Cloud.
4G model includes 24 months of cellular data.

Specifications
PSU -
9-36V

Input -
4 Analog (4-20mA), 4 Digital (0-50VDC)

EMC -
ESD: IEC61000-4-2, Level 2, Surge: IEC61000-4-5, Level 3, Fast Transient: IEC61000-4-4, Level 3
Radiated Immunity: IEC61000-4-3, Conducted Immunity: IEC61000-4-6

Dimensions -
161mm x 115mm x 28mm (6.3in x 4.5in x 1.1in)

Parameter Name	Parameter Value
Type	IoT
Network	Ethernet 4G cellular
