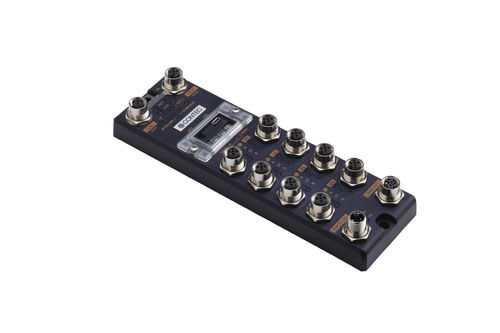

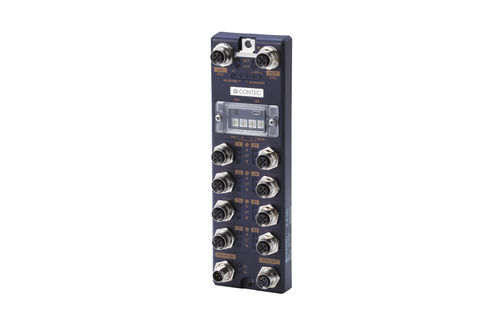

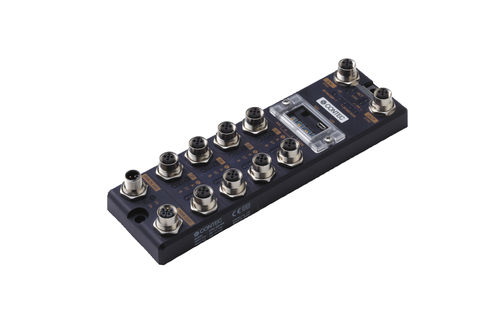

This product is an IO-Link ｍaster with 8 channels of IO-Link port (Class A). It supports industrial Ethernet protocols of differing makers and can connect to the net-work of PROFINET, EtherNet/IP, Modbus TCP, CC-Link IE Field Basic, EtherCAT, and OPC UA with the switches on the product. 8 channels of IO-Link port (Class A) allow parameters to be set independently, and IO-Link mode and SIO mode s can be set per port. As this product has a web server function, the user can install the functions through a Web browser without using a specific tool.

Multi-protocol support
This product supports industrial Ethernet protocols of differing makers, and can connect to the network of PROFINET, EtherNet/IP, Modbus TCP, CC-Link IE Field Basic, EtherCAT, and OPC UA with the switches on the product.

8 channels of independent IO-Link port
8 channels of IO-Link port (Class A) allow parameters to be set independently, and IO-Link mode and SIO mode can be set per port. In addition, digital input during IO-Link communication is achievable since No.2 pin of IO-Link port can be used as a digital terminal.

IP67 dust-proof and water-proof features
With its dust-proof and water-proof design to meet the IP67 rating, the product can be used in locations subject to water or dust particles. (*IP67 is the performance indication when the waterproof caps specified by the CONTEC are set to all connectors.)

M12 power connector adopted
As for a power connector, M12 power connector (L-coded) is adopted. It supplies a large amount of power with its compact size. This product also has a FG terminal (functional grounding) for a power connector.

Parameter Name	Parameter Value
Signal type	digital
Bus	Modbus TCP, EtherNet/IP, EtherCAT, ProfiNet, IO-Link, CC-Link
Type	network remote
Applications	for sensors
Number of inputs/outputs	8-channel
Mounting	wall-mount embedded screw-in built-in
Other characteristics	compact rugged TCP/IP Ethernet IP67
