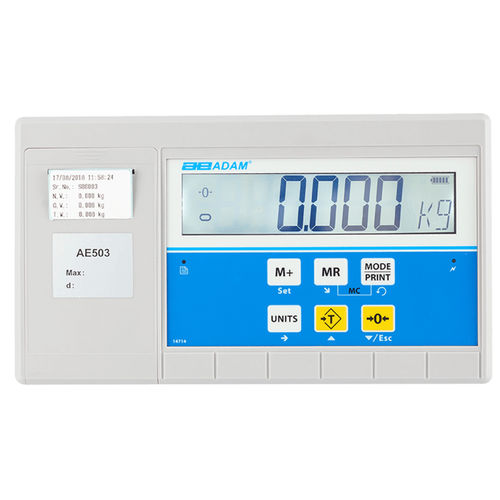

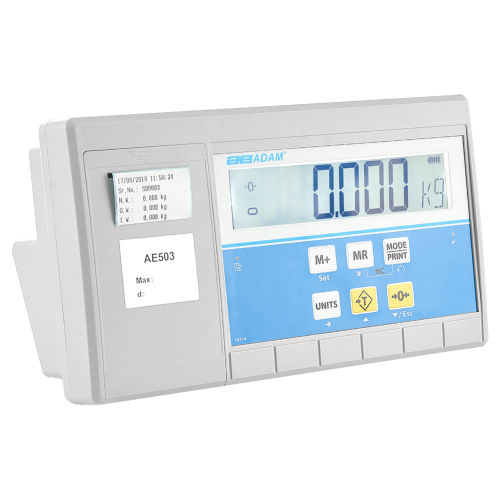

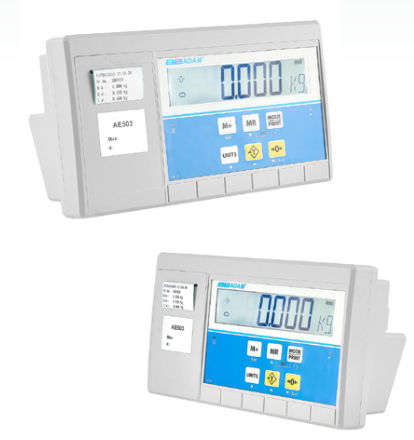

Strong ABS construction and an integrated label printer enhance functionality for the AE 503 label printing indicator, making it an ideal option for weighing, parts counting, percentage weighing, dynamic weighing, check counting, checkweighing and averaging.

A large, easy-to-read backlit LCD screen features 1.3-inch/34mm-tall digits and symbols to show over, under or within limits during checkweighing. A sealed, color-coded keypad allows quick and easy configuration.

Using the built-in printer, add barcodes, QR codes, pictures and custom logos to the 50mm-wide printed labels.

Hardware
•Colour-coded keys facilitate quick recognition of the most frequently used buttons
•RS-232 interface is available to provide speedy connection to computers and printers
•Rugged construction stands up to industrial use
•Built in printer can print weight, QR codes, bar codes and labels in numerous languages

Software
•Zero-tracking feature ensures display returns to zero reading
•Parts counting optimisation automatically refines piece weight as parts are added
•Checkweighing with audible alarm
•External calibration allows for verification and adjustment with weights
•Quick and easy configuration using the keypad
•User-selectable scale division
•Easy label creation/editing is possible on a computer using the included software

Display
•Vivid, backlit LCD easily visible in any lighting conditions
•Programmable backlight can be set to "always on," "always off" or "light only when weighing"

Power
•Rechargeable battery included for operation almost anywhere
•Programmable auto power-off to save energy

Parameter Name	Parameter Value
Measured value	weight
Display	LCD label
Type	integrated
Other characteristics	with counting function
